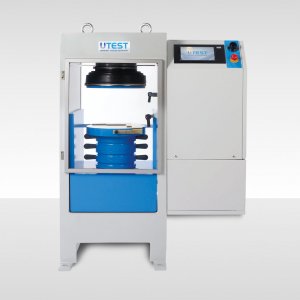

EN 12390-4 Automatic Compression Testing Machines with Welded Walls for Cubes and Cylinders

Product code

UTC-5727.FPR

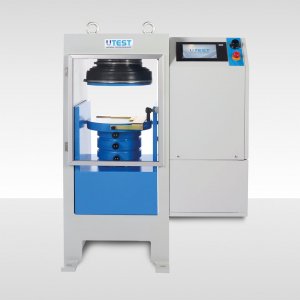

2000 kN EN 12390-4 Automatic  Compressıon Testıng Machines for  Cubes and Cylinders

UTC-5737.FPR

3000 kN EN 12390-4 Automatic  Compressıon Testıng Machines for  Cubes and Cylinders

UTC-0210

High Precision Pressure Transducer and Electronic

UTC-4682

Pedestal for 2000 kN and 3000 kN Compression Testing Frames with Welded Walls

Standarts

Models for 220-240V 50-60 Hz, 1ph UTC-5727.FPR UTC-5737.FPR
Models for 110-120V 60 Hz, 1ph UTC-5727.FPR-N UTC-5737.FPR-N



Standards

EN 12390-4, EN 12390-3



UTC-5727.FPR and UTC-5737.FPR models Automatic Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders acc. to EN 12390-4. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of fixtures or/and concentric centering lines of lower loading platen, the only required operations are;

  •  Setting test parameters, including pace rate (only required when the specimen type is changed).
  • Pressing the START button on the control unit.
  • The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
  • Automatically saves the test parameters and test results.

UTC-4682 Pedestal that is made of steel to facilitate  the user’s  placement of specimens in the frame for compression test should be ordered separately.



Main Features

  • Pace Rate control between 1 kN to 25 kN
  • Accuracy Class 1 acc. to EN 12390-4 starting from with the 5% of the machine capacity (Special calibration option Class 1 starting from 1% of the full range with UTC-0210)
  • Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
  • Tests automatically with closed loop control
  • The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
  • Load measurment with a pressure transducer
  • Hydraulic pump with dual stage for rapid approach
  • Welded steel walled frame with a single acting piston
  • Piston return at the end of test automatically
  • Multi-Point calibration function for the channels
  • Optionally supplied-integrated thermal printer (If requested, must be specified in the order)
  • Real time numeric display of load and load pressure with test graph.



Safety Features

  • Maximum pressure valves to avoid machine overloading
  • Limit switch for piston stroke
  • Emergency stop button
  • Removable transparent front and rear safety doors
  • Software controlled maximum load value
  • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.



Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

In this case, the machines provide load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selecting test channel and additional selector valve.



U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

U-Touch PRO Control Unit UTC-4930.FPR is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

U-Touch PRO Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Digital graphic display is able to draw real-time “Load vs. Time”, or “Stress vs. Time” graphics

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.



UTEST Software for Automatic Compression / Flexure Testing Machines

UTEST software USOFT-4830.FPR provides to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines

The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc. can be seen in detail at the pages of UTEST Software for Automatic Compression / Flexure Testing Machines.

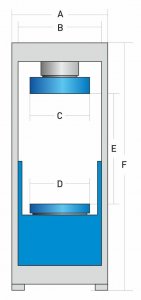

EN 12390-4  AUTOMATIC COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS
Models UTC-5727.FPR UTC-5737.FPR
Product Photo
Capacity 2000 kN 3000 kN
Frame Type Welded Steel Welded Steel
Lower Bearing Block, Dimensions (D) Ø 300 mm Ø 300 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C) Ø 300 mm Ø 300 mm
Surface Hardness of Bearing Blocks  53 HRC  53 HRC
Flatness Tolerance 0,03 mm 0,03 mm
Piston Diameter 250 mm 300 mm
Piston Stroke 50 mm 50 mm

Maximum Vertical Clearance

Between Bearing Blocks (E)

350 mm 350 mm
Horizontal Clearance (B) 360 mm 415 mm
Sizes of Specimens For Cubes (up to) 200 mm (**) 200 mm (**)
Sizes of Specimens For Cylinders (up to) Ø160×320 mm Ø160×320 mm
Power 550 W 550 W
Oil Capacity 20 L 20 L
Maximum Working Pressure 410 Bar 410 Bar
Dimensions (wxlxh) (Axd*xF) 530x810x1150 mm 540x870x1240 mm
Weight 852 kg 1050 kg
Pedestal (Optional) UTC-4682 UTC-4682

(d*) depth

(**) Limited by capacity of the  frame



The machines  for cubes and cylinders are supplied complete with;

• 100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces

• Fixture for centering specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders (UTC-4622E)

• Removable transparent front and rear safety doors

Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.



EN 12390-4 Compression Testing Frames for Cubes and Cylinders

Product code

UTC-5727

2000 kN EN 12390-4 Capacity Compression Testing Frame, for  Cubes and Cylinders, EN

UTC-5737

3000 kN EN 12390-4 Capacity Compression Testing Frame, for  Cubes and Cylinders, EN

UTC-4682

Pedestal for 2000 kN and 3000 kN Compression Testing Frames with Welded Walls



Standarts

EN 12390-4, EN 12390-3



UTC-5727 and  UTC-5737 compression testing frames for cubes and cylinders consist of rigid welded steel walls, a loading cylinder assembly, lower and upper (spherically-seated) loading platens. acc. to EN standards.

EN compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

The frames are supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4.

Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be  positioned on the right hand side of the load frame for easier accessibility, increased productivity and for safer operations.

All frames have a single acting up stroking ram and also have front and rear protective doors and limit swich for piston stroke for safety. The diameter of the piston is designed to work with the load capacity. There is a low friction coaxial PTFE seal between the cylinder and the piston fitted to the cylinder.

The lower loading platens are provided with concentric centfering lines and fixture for centering specimens

UTC-4682 Pedestal that is made of steel to facilitate  the user’s  placement of specimens in the frames for compression test should be ordered separately.

See the below table for supplied items with the frames.



EN 12390-4  COMPRESSION TESTING FRAMES WITH WELDED WALLS FOR CUBES AND CYLINDERS

Models UTC-5727 UTC-5737
Product Photo
Capacity 2000 kN 3000 kN
Frame Type Welded Steel Welded Steel
Lower Bearing Block, Dimensions (D) Ø 300 mm Ø 300 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C) Ø 300 mm Ø 300 mm
Surface Hardness of Bearing Blocks  53 HRC  53 HRC
Flatness Tolerance 0,03 mm 0,03 mm
Piston Diameter 250 mm 300 mm
Piston Stroke 50 mm 50 mm

Maximum Vertical Clearance

Between Bearing Blocks (E)

350 mm 350 mm
Horizontal Clearance (B) 360 mm 415 mm
Sizes of Specimens For Cubes (up to) 200 mm (**) 200 mm (**)
Sizes of Specimens For Cylinders (up to) Ø160×320 mm Ø160×320 mm
Dimensions (wxlxh) (Axd*xF) 440x455x11450 mm 505x550x1205 mm
Weight 755 kg 990 kg
Pedestal (Optional) UTC-4682 UTC-4682

(d*) depth

(**) Limited by capacity of the  frame



The frames for cubes and cylinders are supplied complete with;

• 100mm, 50mm and 30mm height Ø205 mm distance pieces

• UTC-4622E – Fixture for Centering Specimens, compatible with Ø300mm lower loading platen for 100mm and 150mm cubes, Ø100mm and Ø150mm cylinders

• Removable transparent front and rear safety doors

• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.

Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.

EN 12390-4 Automatic Four Column Compression Testing Machines for Cubes and Cylinders

Product code

UTC-6727.FPR

2000 kN EN 12390-4 Capacity Four Column Compression Testing Frame, for  Cubes and Cylinders, EN

UTC-6737.FPR

3000 kN 12390-4 Capacity Four Column Compression Testing Frame, for  Cubes and Cylinders, EN

UTC-6748.FPR

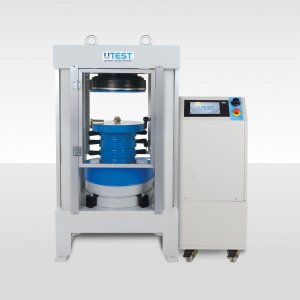

 4000 kN 12390-4 Capacity Four Column Compression Testing Frame, for  Cubes and Cylinders, EN

UTC-6758.FPR

5000 kN 12390-4 Capacity Four Column Compression Testing Frame, for  Cubes and Cylinders, EN

UTC-0210

High Precision Pressure Transducer and Electronic

UTC-4684

Pedestal for 2000 kN and 300 kN Four Column Compression Testing Frames

UTC-4686

Pedestal for 4000 kN and 5000 kN Four Column Compression Testing Frames



Models for 220-240V, 50-60Hz, 1ph

UTC-6727.FPR

UTC-6737.FPR

UTC-6747.FPR

UTC-6757.FPR

Models for 110V 60 Hz

UTC-6727.FPR -N

UTC-6737.FPR -N

UTC-6747.FPR -N

UTC-6757.FPR -N

Information

Models for 220-240V, 50-60Hz, 1ph UTC-6727.FPR UTC-6737.FPR UTC-6747.FPR UTC-6757.FPR
Models for 110V 60 Hz UTC-6727.FPR -N UTC-6737.FPR -N UTC-6747.FPR -N UTC-6757.FPR -N



Standards

EN 12390-4, EN 12390-3



UTC-6727.FPR, UTC-6737.FPR UTC-6747.FPR and UTC-6757.FPR models Automatic Four Column Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders acc. to EN. These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of fixtures or/and concentric centering lines of lower loading platen, the only required operations are;

  • Setting test parameters, including pace rate (only required when the specimen type is changed).
  • Pressing the START button on the control unit.
  • The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
  • Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

UTC-4684 and UTC-4686  Pedestals that are made of steel to facilitate  the user’s  placement of specimens in the machines for compression test should be ordered separately.



Main Features

 Pace Rate control between 1 kN to 25 kN

  • Accuracy Class 1 acc. to EN 12390-4 starting from with the 5% of the machine capacity (Special calibration option Class 1 starting from 1% of the full range with UTC-0210)
  • Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
  • Tests automatically with closed loop control
  • The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
  • Load measurment with a pressure transducer
  • Hydraulic pump with dual stage for rapid approach
  • Welded steel walled frame with a single acting piston
  • Piston return at the end of test automatically



U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

U-Touch PRO Control Unit UTC-4930.FPR is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

U-Touch PRO Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Digital graphic display is able to draw real-time “Load vs. Time”, or “Stress vs. Time” graphics

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.



UTEST Software for Automatic Compression / Flexure Testing Machines

UTEST software USOFT-4830.FPR provides to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines

The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc. can be seen in detail at the pages of UTEST Software for Automatic Compression / Flexure Testing Machines.



Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

In this case, the machines provide load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selecting test channel And additional selector valve.



Safety Features

  • Maximum pressure valves to avoid machine overloading
  • Limit switch for piston stroke
  • Emergency stop button
  • Removable transparent front and rear safety doors
  • Software controlled maximum load value
  • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.



EN 12390-4 AUTOMATIC FOUR COLUMN COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS

Models UTC-6727.FPR UTC-6737.FPR UTC-6748.FPR UTC-6758.FPR
Product Photo
Capacity 2000 Kn 3000 kN 4000 kN 5000 kN
Frame Type Four Column Four Column Four Column Four Column
Lower Platens Dimensions (D) Ø 300 mm Ø 300 mm Ø 360 mm Ø 360 mm
Upper Platens With Ball Seating Assembly Dimensions (C) Ø 300 mm Ø 300 mm Ø 360 mm Ø 360 mm
Surface Hardness of Loading  Platens ≥ 53 HRC ≥ 53 HRC ≥ 53 HRC ≥ 53 HRC
Flatness Tolerance 0,03 mm 0,03 mm 0,03 mm 0,03 mm
Piston Diameter 300 mm 350 mm 400 mm 450 mm
Piston Stroke 50 mm 50 mm 100 mm 100 mm
Maximum Vertical Clearance Between Platens (E) 350 mm 350 mm 520 mm 520 mm
Sizes  of Specimens For Cubes 200 mm (**) 200 mm (**) 200 mm (**) 200 mm (**)
Sizes  of Specimens For Cylinders (up to) Ø160×320 mm Ø160×320 mm Ø250×500 mm (**) Ø250×500 mm (**)
Power 750 W 750 W 750 W 750 W
Oil Capacity 20 L 20 L 20 L 20 L
Maximum Working Pressure 410 Bar 410 Bar 410 Bar 410 Bar
Dimensions (wxlxh) (Axd*xG) 960x560x1100 mm 1050x690x1150 mm 1145x825x1540 mm

 1145x825x1570 mm

Weight 1020 kg 1520 kg 2570 kg 2625 kg
Pedestal (Optional) UTC-4684 UTC-4684 UTC-4686 UTC-4686

(d*) depth

(**) Limited by capacity of the  frame



The machines for cubes and cylinders are supplied complete with;

•100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces (two pcs. each  for UTC-6748 and UTC-6758)

•UTC-4622E – Fixture for Centering Specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders(for UTC-6727 and UTC-6737)

•UTC-4624E – Fixture for centering specimens, compatible with Ø360 mm lower loading platen for 150 mm and 250 mm cubes, Ø150 mm and 250 mm cylinders (for UTC-6748 and UTC-6758)

•Removable transparent front and rear safety doors.

• The front safety doors have an automatic safety device to stop the machine if the door is opened during a test



Appropriate distance piece/s for the cylinder and cube specimens with the height of lower than 150 mm should be ordered separately.

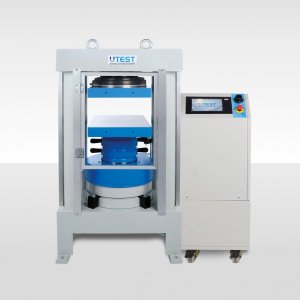

EN 12390-4 – EN 772-1 Automatic Four Columns Compression Testing Machines for Masonary Units, Cubes and Cylinders

Product code

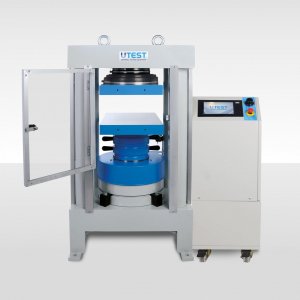

UTC-6729.FPR 2000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-6739.FPR 3000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-6749.FPR 4000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-6759.FPR 5000 kN EN 12390-4 and EN 772-1 Four Column Compression Testing Frame for Masonary Units, Cubes and Clinders
UTC-0210 High Precision Pressure Transducer and Electronic
UTC-4684 Pedestal for 2000 kN and 3000 kN Four Column Compression Testing Frames
UTC-4686 Pedestal for 4000 kN and 5000 kN Four Column Compression Testing Frames

Information

Models for 220-240V, 50-60Hz, 1ph UTC-6729.FPR UTC-6739.FPR UTC-6749.FPR UTC-6759.FPR
Models for 110V 60 Hz UTC-6729.FPR -N UTC-6739.FPR -N UTC-6749.FPR -N UTC-6759.FPR -N



Standards

EN 12390-4, EN 772-1



UTC-6729.FPR, UTC-6739.FPR, UTC-6749.FPR and UTC-6759.FPR models Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units, cubes and cylinders acc. to EN standards .These machines also meet the requirements of CE norms with respect to the health and safety of the operator.

The machines allow inexperienced operators to perform the test. Once the machine has been switched on and the specimen is positioned and centered by the help of fixtures or/and concentric centering lines of lower loading platen, the only required operations are;

  • Setting test parameters, including pace rate (only required when the specimen type is changed).
  • Pressing the START button on the control unit.
  • The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
  • Automatically saves the test parameters and test results.

The Machines consist of a welded steel frame (see table) and UTC-4830FPR automatic hydraulic power pack with U-Touch PRO Control Unit.

UTC-4684 and UTC-4886 Pedestals  that are made of steel to facilitate  the user’s  placement of specimens in the machines for compression test should be ordered separately.



Main Features

  • Pace Rate control between 1 kN to 25 kN
  • Accuracy Class 1 acc. to EN 12390-4 starting from with the 5% of the machine capacity (Special calibration option Class 1 starting from 1% of the full range with UTC-0210)
  • Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
  • Tests automatically with closed loop control
  • The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines.
  • Load measurment with a pressure transducer
  • Hydraulic pump with dual stage for rapid approach
  • Welded steel walled frame with a single acting piston
  • Piston return at the end of test automatically



U-Touch PRO Control Unit for Automatic Compression / Flexure Testing Machines

U-Touch PRO Control Unit UTC-4930.FPR is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

All the operations of U-Touch PRO are controlled from the front panel touch screen display.

U-Touch PRO Control Unit has easy to use menu options. It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric value to set the test parameters. Digital graphic display is able to draw real-time “Load vs. Time”, or “Stress vs. Time” graphics

PLEASE see the pages of “U-Touch PRO Control Unit for Automatic Compression/Flexure Testing Machines” for details of the properties.



UTEST Software for Automatic Compression / Flexure Testing Machines

UTEST software USOFT-4830.FPR provides to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as concrete, cement mortar, masonary units/blocks by controlling the Utest automatic compression / flexure testing machines.

The advantages of performing tests on computer with using UTEST Software, such as reporting, graphical output, etc. can be seen in detail at the pages of UTEST Software for Automatic Compression / Flexure Testing Machines.



Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

In this case, the machines provide load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selecting test channel And additional selector valve.



Safety Features

  • Maximum pressure valves to avoid machine overloading
  • Limit switch for piston stroke
  • Emergency stop button
  • Removable transparent front and rear safety doors
  • Software controlled maximum load value
  • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.



EN 12930-4 and EN 772-1  AUTOMATIC FOUR COLUMNS COMPRESSION TESTING MACHINES

FOR MASONARY UNITS, CUBES AND CYLINDERS

Models UTC-6729.FPR UTC-6739.FPR UTC-6749.FPR UTC-6759.FPR
Product Photo
Capacity 2000 kN 3000 kN 4000 kN 5000 kN
Frame Type Four Column Four Column Four Column Four Column
Lower Platens Dimensions (D) 310x510x50 mm 310x510x50 mm 310x510x50 mm 310x510x50 mm
Upper Platens With Ball Seating Assembly Dimensions (C) 310x510x50 mm 310x510x50 mm 310x510x50 mm 310x510x50 mm
Surface Hardness of Loading  Platens ≥ 55 HRC ≥ 55 HRC ≥ 55 HRC ≥ 55 HRC
Flatness Tolerance 0,03 mm 0,03 mm 0,03 mm 0,03 mm
Piston Diameter 300 mm 350 mm 400 mm 450 mm
Piston Stroke 50 mm 50 mm 100 mm 100 mm
Maximum Vertical Clearance Between Platens (E) 330 mm 330 mm 520 mm 520 mm
Sizes  of Specimens For Cylinders (up to) Ø160×320 mm Ø150×300 mm Ø150×300 mm Ø150×300 mm
Sizes  of Specimens For Cubes (up to) 300 mm (**) 300 mm (**) 300 mm (**) 300 mm (**)
Sizes  of Specimens For Masonary Units (up to) 300×500 mm (**) 300×500 mm (**) 300×500 mm (**) 300×500 mm (**)
Power
750 W 750 W 750 W 750 W
Oil Capacity 20 L 20 L 20 L 20 L
Maximum Working Pressure 410 Bar 410 Bar 410 Bar 410 Bar
Dimensions (wxlxh) (Axd*xG) 960x560x1100 mm 1050x690x1150 mm 1145x825x1540 mm 1235x640x1555 mm
Weight 1110 kg 1625  kg 2640 kg 3345 kg
Pedestal (Optional) UTC-4684 UTC-4684 UTC-4686 UTC-4686

(d*) depth

(**) Limited by capacity of the  frame



The machines  for masonary units,cubes and cylindrs  are supplied complete with;

• 100 mm, 50 mm, 2×30 mm height x Ø205 mm distance pieces (two pcs. each  for UTC-6749 and UTC-6759)

• UTC-4626E – Fixture for centering specimens, compatible with 310x510x50 mm lower loading platen, for 100 mm and 150mm cubes and  Ø100 mm and Ø150 mm cylinders (for UTC-6729 and UTC-6739)

• UTC-4627E – Fixture for centering specimens, compatible with 310x510x50 mm lower loading platen, for 150mm and 250mm cubes, Ø150mm and Ø250mm cylinders for UTC-6749 and UTC-6759

• Scissor Jack for Loading Platens/Bearing Blocks (UTC-4629)
• Removable transparent front and rear safety doors


Appropriate distance piece/s for the cylinder and cube specimens with the height of lower than 150 mm should be ordered separately for UTC-6729.FPR and UTC-6739.FPR



UTEST SOFTWARE for Automatic Concrete&Cement Compression/Flexure Testing Machines

Product code

USOFT-4930.FPR

UTEST Software for Automatic Concrete&Cement Compression/Flexure Testing Machines



Information

Utest USOFT-4930.FPR Software has been designed for data acquisition, processing controlling, presentation and reporting compression, flexure, splitting tensile strength tests of construction materials such as concrete, cement, masonry units/blocks with appropriate Automatic Concrete&Cement Compression/Flexure Testing Machines and also with a computer.

This software provides data acquisition and management for compression, flexure and splitting tensile tests of construction materials such as concrete, cement, bricks.

The advanced functions for data base management provide an easy navigation of all saved data.

The test results certificate includes all descriptive information.

Therefore, test parameters can be set and details about the test carried out such as client details, test type, specimen type, user info and other information required can be entered and printed out as well as test report and graph.



Following tests can be done with the USOFT-4930.FPR Software;

  • Compressive Strength of Concrete Cylinders / Cubes
  • Flexural Strength of Concrete Beams
  • Flexural Strength of Concrete Kerbs
  • Tensile Splitting Strength of Concrete Cylinders / Cubes
  • Tensile Splitting Strength of Concrete Paving Blocks
  • Compressive Strength of Masonry Units/Blocks
  • Flexural Strength of Concrete  Flagstones/Slabs
  • Compressive Strength of Hydraulic-Cement Mortars
  • Flexural Strength of Hydraulic-Cement Mortars



Detailed information of the following properties of USOFT-4930.FPR software, please look at the “General Properties of Utest USOFT Series Softwares” pages.



  • Multi-Language Support and Customizable User Interface
  • User Identification and Authorization
  • Unlimited Test Result Storage Capacity in One Test File
  • Exporting Test Results to Database
  • Advanced Test Graphical Interface
  • Option to Store and Recall Test Information
  • Modification of Test Machine Parameters Using the Software
  • Exporting Reports and Graphs
  • Flexible Report and Graph Formats
  • Help and User Manual Display



EN 12390-4 EN SEMI-AUTOMATIC Compression Testing Machines for Cubes and Cylinders

Product code

UTC-5727.SLP

2000 kN EN 12390-4 Capacity Compression Testing Machines, for Cubes and Cylinders, EN

UTC-5737.SLP

3000 kN EN 12390-4 Capacity Compression Testing Machines, for Cubes and Cylinders, EN

UTC-0210

High Precision Pressure Transducer and Electronic

UTC-4682

Pedestal for 2000kN and 3000 kN Compression Testing Frames with Welded Walls



Models for 220-240V 50-60 Hz, 1ph

UTC-5727.SLP

UTC-5737.SLP

Models for 110-120V 60 Hz, 1ph

UTC-5727.SLP-N

UTC-5737.SLP-N

Information

EN 12390-4, EN 12390-3

UTC-5727.SLP and UTC-5737.SLP models Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders acc. to EN standards.

These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The Semi-Automatıc Compression Machines consist of a welded frame (see table), hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

UTC-4682 Pedestal that is made of steel to facilitate  the user’s  placement of specimens in the frame for compression test should be ordered separately.



Main Features

  • Class A starting from with the 5% of the machine capacity, (Special calibration option starting from 1% of the full range with UTC-0210)
  • 1 channel with two different calibration table, test parameters and specimen  information (by changing the sensor belong to other frame, the unit can be control for second test frame)
  • Multi-point calibration
  • Real time numeric display of load and load pressure
  • Supplied with factory calibration certificate for force transfer stability and the self-alignment of the upper loading platen conforming to EN 12390-4
  • Welded steel walled frame with lower and upper (shperically-seated) loading platens
  • Load measurment with a pressure transducer
  • Hydrolic pump with dual stage for rapid approach
  • RS232  Serial port for PC or thermal or dot matrix printer
  • Free of charge Utest software for compression/flexture testing machines (USOFT-4820.SLP) for compression, flexture, splitting tensile strength tests of construction materials such as concrete, cement, brick/masonary units



Safety Features

  • Maximum pressure valves to avoid machine overloading
  • Limit switch for piston stroke
  • Removable transparent front and rear safety doors
  • The front safety doors have an automatic safety device to stop the machine if the door is opened during a test.



USOFT-4820.SLP Test Software is improved for semi-automatic concrete compression and flexural testing machines with LPI Battery Operated Digital Readout Unit durring the test to collect and record data and to prepare the report containing the results obtained.Before the test, a PC which the Utest software is installed is connected to RS232 port of LPI reading unit, the data obtained in the test can be monitored and recorded in real time. The advanced functions for data base management provide an easy navigation of all saved data. Test report including the test results and user defined test information (names and the Company details, test type, specimen type, user info and other knowledge required) can be print out.



EN 12390-4  SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR CUBES AND CYLINDERS

Models UTC-5727.SLP UTC-5737.SLP
Product Photo
Capacity 2000 kN 3000 kN
Frame Type Welded Steel Welded Steel
Lower Bearing Block, Dimensions (D) Ø 300 mm Ø 300 mm
Upper Bearing Block, (With Spherically Seating Assembly ) Dimensions (C) Ø 300 mm Ø 300 mm
Surface Hardness of Bearing Blocks  53 HRC  53 HRC
Flatness Tolerance 0,03 mm 0,03 mm
Piston Diameter 250 mm 300 mm
Piston Stroke 50 mm 50 mm

Maximum Vertical Clearance

Between Bearing Blocks (E)

350 mm 350 mm
Horizontal Clearance (B) 360 mm 415 mm
Sizes of Specimens For Cubes (up to) 200 mm (**) 200 mm (**)
Sizes of Specimens For Cylinders (up to) Ø160×320 mm Ø160×320 mm
Power 550 W 550 W
Oil Capacity 20 L 20 L
Maximum Working Pressure 410 Bar 410 Bar
Dimensions (wxlxh) (Axd*xF) 750x455x1145 mm 805x500x1205 mm
Weight 820 kg 1060 kg
Pedestal (Optional) UTC-4682 UTC-4682

(d*) depth

(**) Limited by capacity of the  frame



The machines  for cubes and cylinders are supplied complete with;

• 100 mm, 50 mm, 30 mm height x Ø205 mm distance pieces

• UTC-4622E – Fixture for Centering Specimens, compatible with Ø300 mm lower loading platen for 100 mm and 150 mm cubes, Ø100 mm and Ø150 mm cylinders

• Removable transparent front and rear safety doors



Appropriate Distance piece/s for the cylinder and cube specimens with the height of lower than 150mm should be ordered separately.

Flexural Frames Rectangle Type

Product code

UTC-5610

100 kN Flexural Testing Frame, Rectangle Type

UTC-5620

200 kN Flexural Testing Frame, Rectangle Type

UTC-5622

200 kN Flexural Testing Frame, TWOFLEX

Information

EN 1338, 1339, 1340, 1341, 1343, 12390-5, 12390-6; BS 1881;

ASTM C78, C293, C496



The versatile UTEST Flexural Testing Frames are designed for minimum deflection at maximum load resulting in very high accuracy. The load frame is a welded steel fabrication carrying the ram fitted to the upper crosshead. The frames have a single acting down stroking ram.The return of the ram is done by spring to get maximum accuracy on the load measurement. A load cell is used for load measurements on all frames.

Each model is designed to accept all accessories required for flexural, transverse or compression tests.

UTEST Flexural Frames models are designed to allow easy and practical front loading of the specimens.

UTC-5622 TWOFLEX frame provides the advantage of being able to perform flexural tests on longer specimens

All frames can be connected to any UTEST compression machine as a second frame or can be used with any UTEST power pack as an independent Flexural Machine.



The main characteristics are:

  • High stability/rigidity welded assembly (200 kN/mm stiffness)
  • Can be used for flextural strength tests of concrete paving flag and natural stone slabs, concrete or natural stone kerbs and tensile splitting test of concrete paving blocks
  • Safety limit switch for piston stroke
  • High accuracy load measurement with strain gauge load cells
  • Can accept wide range of accessories for mentioned standards
  • Can be connected to any UTEST compression machine or UTEST power pack



Test assemblies such as;

  • Flexture strengt test of concrete beam (UTC-5501), kerb (UTC-5502) and flagstone (UTC-5504),
  • Indirect tensile strengt test of paving block (UTC-0355 and UTC-5510),
  • Splitting tensile strengt test of concrete cubes (UTC-0360) and cylinders (UTC-0350),
  • Compression strengt test of any condtruction material (UTCM-4116and distance pieces  UTC-4630, UTC-4631, UTC-4633 and UTC-4634) should be ordered separately.



 Product Code UTC-5610 UTC-5620 UTC-5622
Capacity 100 kN 200 kN 200 kN
Ram Travel 100 mm 120 mm 120 mm
Max. Vertical Clearance with UTC-5501 165 mm 165 mm 165 mm
with UTC-5502 233 mm 233 mm 233 mm
with UTC-5504 140 mm 140 mm 140 mm
Max. Horizontal Clearance 870 mm 820 mm 820 mm

Max. Clerance Between

Lower Rollers

750 mm

720 mm 1150 mm
Ram return by Spring Spring Spring
Overall Dimensions 1170x515x1144 mm 580x960x1270  mm 1060x1290x1210 mm
Weight (approx.) 225 kg 200 kg 240 kg

Flexural Frame C Type

Product code

UTC-5630

300 kN Capacity Flexural Testing Frame C Type

Information

EN 1338, 1339, 1340, 1341, 1343, 12390-5, 12390-6; BS 1881;

ASTM C78, C293, C496



C type Flexural Testing Frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame provides the stability needed for accurate and repeatable test re­sults over the years of operation.The frame has a single acting down stroking ram.The return of the ram is done by spring to get maximum accuracy on the load measurement. A load cell is used for load measurements on all frames.

UTC-5630 is designed to accept all accessories required for flexural, transverse or compression tests.

The frame can be connected to any UTEST compression machine as a second frame or can be used with any UTEST power pack as an independent Flexural Machine.



The main characteristics is:

  • High stability welded assembly
  • Can be used for flextural strength tests of concrete paving flag and natural stone slabs, concrete or natural stone kerbs and tensile splitting test of concrete paving blocks
  • Safety limit switch for 100 mm piston stroke
  • High accuracy load measurement with strain gauge load cells
  • Can accept wide range of accessories for mentioned standards
  • Can be connected to any UTEST compression machine or UTEST power pack



Test assemblies such as;

  • Flextural strengt test of concrete beam (UTC-5501), concrete kerb (UTC-5502) and flagstone (UTC-5504), Indirect tensile strengt test of paving block (UTC-0355 and UTC-5510), Splitting tensile strengt test of concrete cubes (UTC-0360) and cylinders (UTC-0350)
  • Compression strengt test of any construction material (UTM-8516) and distance pieces  UTC-4630, UTC-4631, UTC-4633 and UTC-4634 should be ordered separately.



 Product Code

UTC-5630

Capacity

300 kN

Ram Travel

100 mm

Max. Vertical Clearance

with UTC-5501

165 mm

with UTC-5502

233 mm

with UTC-5504

140 mm

Max. Clerance Between

Lower Rollers

900 mm

The Distance Between The Center of The Piston to The Side of The Frame

320 mm

Ram return by

Spring

Overall Dimensions

1100x900x1250 mm

Weight (approx.)

555 kg

Flexural Frame Four Column Type

Product code

UTC-5660

600 kN Capacity Flexural Frame Four Column Type

Information

EN 1338, 1339, 1340, 12390-5, 12390-6; ASTM C78, C293, C496



UTEST 600 kN capacity flexural frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame is a four column design  carrying the ram fitted to the upper crosshead. The frames has a double acting stroking ram with over travel switch protection to shut the machine down when maximum ram travel is reached. A load cell is used for load measurements on the  frame.

The load frame provides the stability needed for accurate and repeatable test results over the years of operation.



 The main characteristics are:

  • High stability four column design
  • Has the accuracy of Class 1 starting from 2% of the full capacity.
  • Has special equipment to place the heavy specimens
  • Can be connected to any Utest hydraulic power unit similar UTC-4840FPR
  • Safety limit switch for 420 mm piston stroke



Supplied complete with;

  • Special speciment placement equipment for heavy specimens,
  • A scissor jack (1,5 ton capacity) for placement of heavy specimens
  • Flexural testing assembly with 2 upper and 2 lower rollers (Ø40×420 mm)



Capacity

600 kN

Ram Type

Double Acting

Ram Travel

420 mm

Max. Vertical Clearance between upper and lower rollers ((Ø40×420 mm)

430 mm

Max. Horizontal Clearance between the columns of the frame  (In the direction of the special specimen placement equipment,)

640 mm

Max. Horizontal Clearance between the columns of the frame (In the other direction)

500 mm

Max. Clerance Between  Lower Rollers

2360 mm

Min. Clerance Between  Upper Rollers

100 mm

Max. Clerance Between  Lower Rollers

400 mm

Overall Dimensions (Frame)

1040x2500x2810 cm

Overall Dimensions (Frame with the special specimen placement equipment)

1040x5620x2810 cm

Weight with the special specimen placement equipment and the scissor jack (approx.)

3000 kg



ACCESSORIES for Flexural Testing Frames

Product code

UTC-5501

Flexural Testing Assembly for Concrete Beams, Set of 2 upper and 2 lower rollers of 38 mm dia and 160 mm length

UTC-5502

Flexural Testing Assembly for Concrete Kerbs, Set of 2 lower roller of 38mm dia.x620mm lenght and upper loading arm with Ø 40 mm swivel jointed steel pad.

UTC-5503 Upper Loading Arm with Ø40mm Swivel Jointed Steel Pad. EN 1340 (lower rollers are not included). To be used with lower rollers of UTC-5504.
UTC-5504

Flexural Testing Assembly,

Set of 2 lower and 1 upper roller of 38 mm dia.and 620 mm lenght.

UTC-5506

Auxiliary Testing Frame for The Measurement of Deflection on Concrete Beams with 2 pcs.

Linear Potentiometric Displacement Transducer

UTC-5507

Auxiliary Testing Frame for The Measurement of Deflection on Beams with 2 pcs. High Accurate Displacement Transducer

UTM-8516

Lower and Upper (spherical seating Loading Platens Ø165 mm

UTC-5510

Distance Piece (Ø165 mm x 20 mm thick) for Flextural Testing Frame



Information

EN 1338, 1339, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496, UNI10834



UTC-5501 Flexural Testing Assembly for Concrete Beams

The test assembly, conforming with EN 12390-5, ASTM C78, ASTM C293, BS 1881:118, is used for center or two-point (third-point loading-ASTM) loading flexural tests on 100 mm or 150 mm concrete beams.

Can be used with all UTEST flexural testing frames. The distance of lower rollers can be adjusted between 100 mm to 800 mm. The distance between upper rollers can be set to 100 mm or 150 mm. For  center-point loading flextural test one of the rollers can be removed and the other placed in the center. The rollers dimensions are 38 mm dia.x 160 mm length.

Dimensions

200x200x200 mm

Weight (approx.)

16 kg



UTC-5502 Flexural Testing Assembly for Concrete Kerbs

The testing assembly, conforming with EN 1340, is used for flexural tests on concrete kerbs. The set consists of two lower rollers 38 mm dia. x 620 mm long and 40 mm dia. upper loading piston with ball seating assembly.

Can be used with all UTEST flexural testing frames. The distance of lower rollers can be adjusted between 100 mm to 800 mm.

Dimensions

620x250x100 mm

Weight (approx.)

17 kg



UTC-5504 Flexural Test Assembly

UTC-5504 Flexural Testing Assembly consist of two lower rollers and one upper  roller of 38 mm dia. and 620 mm length is used for flexural tests on concrete paving flags and concrete terrazo tiles, natural stone kerbs and slabs. The distance of lower rollers can be adjusted between 100 mm to 800 mm. Conform with EN 1339, EN 1343, EN 12372.

A user with the UTC-5004 Flexure Test Assembly for flexural strenght tests of concrete paving slabs and concrete terrazo tiles, natural stone curbs and slabs, additionally it is possible to carry out flexural strenght test of concrete curb according to EN 1340 by supplying only UTC-5003.

Dimensions

620x260x150 mm

Weight (approx.)

25 kg



UTC-5506 & UTC-5507 Auxiliary Testing Frames for The Measurement of Deflection on Concrete Beams

The Auxiliary testing frame is used for the measurement of deflection during the flexure test on 100x100x400/500 mm and 150x150x500/600 mm beams conforming to ASTM C1018.

The auxiliary testing frames can be used on all UTEST flexural testing frames.

For displacement controlled test, UTC-5507 Auxiliary testing frames with high accurate displacement transducers should be used with UTC-4850 or UTC-4860 advanced servo controlled automatic power packs with proportional valve units or UTC-4870 advanced servo controlled automatic power pack with servo valve.

For load controlled test, UTC-5506  Auxiliary testing frames with linear potantiometric displacement transducers or UTC-5507  Auxiliary testing frames with high accurate displacement transducers should be used with any UTEST servo controlled or automatic power packs.

UTC-5506 Auxiliary Testing Frame is supplied complete with 2 pcs. linear potantiometric displacement transducers (10mm x0,001mm UTGM-0060) and UTC-5507 Auxiliary Testing Frame is supplied complete with 2 pcs. high accurate displacement transducers (10mm x0,001mm UTGM-0072).

UTC-5501 Flexural Test Assembly for concrete beams should be ordered separately.

Dimensions

500x250x100 mm

Weight (approx.)

4 kg



Spilitting Tensile Test for Concrete Paving Blocks and Compressive Strength Test with Flexural Testing Frames

The test assembly is used to perform spilitting tensile test for concrete paving blocks and compressive strength tests with the Utest flexure testing frames.

The set consists of UTM-8516 Lower and Upper (spherical seating Loading Platens Ø165 mm and UTC-5510 Distance Piece (Ø165 x 20 mm thick). For the spilitting tensile test for concrete paving blocks (EN 1338), splitting tensile test device (UTC-0355 or UTC-0356) should be ordered separately.

For the compressive strength test, depending on the height of the specimens to be tested, Ø165 mm distance pieces (15 mm: UTC-4630, 30 mm:UTC-4631, 50 mm: UTC-4633, 100 mm: UTC-4634) should be ordered separately.



 Proıduct Code

Dimensions

Weight (approx.)

UTM-8516

170x170x145 mm

9 kg

UTC-5510

210x210x30mm

2 kg

UTC-0355

240x160x320 mm

17,5 kg

UTC-4630

165x285x20 mm

2,5 kg

UTC-4631

165x285x35 mm

5 kg

UTC-4633

165x285x55 mm

8 kg

UTC-4634

165x285x95 mm

14 kg

Slump Test Set, EN

Product code

UTC-0398E

Portable Slump Test Set, EN

UTC-0400E

Slump Test Set, EN

UTC-0402E

Slump Cone, EN

UTC-0404E

Slump Base Plate 500x500x60 mm

with Handle, EN

UTC-0406

Slump Cone Funnel, Galvanized Steel

UTC-0408

Tamping Rod Ø 16×600 mm

UTC-0410

Tamping Rod Ø10×300 mm

UTGH-1605

Round Scoop, Medium

UTGM-0380

Steel Ruler 300×1 mm



Information

EN 12350-2



The Slump test method is used for the determination of the consistency and workability of fresh concrete.

UTC-0398E and UTC-0400E Slump Test Sets are supplied galvanized to prevent corrosion.

All parts of the Portable Slump Test Set (UTC-0398E) can be carried together easily.



The Slump Test Set are supplied complete with;

  • Slump Cone Top Dia: 100 ±2 mm / Base Dia: 200 ±2 mm / Height: 300 ±2 mm  / Thickness 1,5mm
  • Slump Base Plate 500x500x60 mm with Handle (with UTC-0400E)
  • Slump Base Plate with Handle and Clamps( with UTC-0398E)
  • Slump Funnel, Galvanized Steel
  • Tamping Rod Ø16×600 mm
  • Round Scoop, medium
  • Steel Ruler 300×1 mm



Dimensions

550x560x310 mm

Weight (approx.)

9 kg

Concrete Flow Table Test Set

Product code

UTC-0510

Concrete Flow Table Test Set

UTC-0512

Flow Cone for UTC-0510

UTC-0513

Wooden Tamper 40x40x335 mm

Information



Dimensions 700x850x300 mm
Weight (approx.) 40 kg



Vebe Consistometer

Product code

UTC-0560E

Vebe Consistometer, EN

UTC-0560A

Vebe Consistometer, ASTM C 1170

UTC-0562A

Vebe Consistometer, ASTM C 1176

UTC-0563A

Mass of Calibration for UTC-0560A, UTC-0562A and UTC-0566A, ASTM

UTC-0565A

Accessories Set to make UTC-0560A conform to ASTM C1176

UTC-0566A

Vebe Consistometer conforming to ASTM C1170 and C1176



Information

Models for 110-120V 60 Hz, 1 ph.

UTC-0560A-N

UTC-0562A-N

UTC-0566A-N

Models for 220-240V 60 Hz, 1 ph.

UTC-0560A-K

UTC-0562A-K

UTC-0566A-K

Models for 220-240V 50-60 Hz, 1 ph.

UTC-0560E



Standards

EN 12350-3, ASTM C 1170, C 1176



UTC-0560E model consistometer conforms to EN 12350-3 for determining the consistency of fresh concrete by means of the Vebe time. The unit  consists of  a vibrating table, cylindrical bucket, slump cone, thick transparent disc  complete with filling funnel and tamping rod.

UTC-0560A model consistometer conforms to ASTM C 1170 for Determining Consistency and Density of Roller-Compacted Concrete. The unit  consists of  a vibrating table, swing arm with guide sleeve, test mold, surcharge assembly with  12,5 kg (27,5 lb) and 22,7 kg (50 lb) weihgts.

UTC-0562A model consistometer conforms to ASTM C 1176 for preparing and making roller-compacted concrete in cylinder molds intended for use in testing.The unit  consists of  a vibrating table, swing swivel arm with guide sleeve, surcharge assembly with 9 kg (20 lb) weihgt  and steel type A mold.

UTC-0563A Mass of Calibration for UTC-0560A or UTC-0562A or UTC-0566A should be ordered seperately.



 Product Code

UTC-0560E

UTC-0560A

UTC-0562A

UTC-0565A

Dimensions

460x520x710 mm

305x490x890 mm 12”x19,3”x35,1”

305x490x730 mm 12”x19,3”x28,7”

254x460x340 mm 10”x18,1”x13,4

Weight (approx.)

47 kg

150 kg (331 lbs)

135 kg (298 lbs)

25 kg (55 lbs)

Power

170 W

170 W

170 W

Degree of Compactability (Waltz) Container

Product code

 UTC-0550  Degree of Compactability (Waltz) Container

Information

EN 12350-4



The UTC-0550 Degree of Compactability (Waltz) Container is used to measure the degree of compactability of fresh concrete.

It consists of a 200x200x400 mm (width x depth x height) metal container with two carrying handles. Coated against corrosion.



Dimensions

290x210x400 mm

Weight (approx.)

5 kg

Air Contents

Product code

UTC-0650

Air Entrainment Meter, 7 Liter, B Type

UTC-0651

Air Entrainment Meter, 8 Liter, B Type

UTC-0652

Manometer for UTC-0650

UTC-0408

Tamping Rod Ø16×600 mm

UTC-0412B.E

Compacting Bar (Square Section, 25×25mm), Steel, approx. 380mm

UTC-0656

Calibration Vessel for UTC-0650, Brass, (%5)

UTC-0657

Calibration Vessel for UTC-0650, Aluminium, (%5), for UTC-0650

UTC-0658

Calibration Vessel for UTC-0651, Brass, (%5)

UTC-0659

Calibration Vessel for UTC-0651, Calibration Vessel, Aluminium, (%5)

UTS-0714

Straight Edge 300x30x3 mm

Information

EN 12350–7; ASTM C231; AASHTO T152; BS 1881:108



The UTC-0650 and UTC-0651 Air Entrainment Meters are used for determining the air content of fresh concrete.They consist of a flanged 7 or 8 liter capacity cylindrical vessel and cover assembly incorporating a pressure gauge, air pump and valves.They have a quick action clamping system. Direct pressure gauge reading to the nearest 0.1% up to 6% air, 0.2% from 6 to 8% air and % 0.5  from 8 to 15%air. It is not affected by changes in barometric pressure.

Calibration vessels and compacting bar with square section should be ordered seperately.



The Air Entrainment Meters are supplied complete with;

  • Straight Edge
  • Tamping Rod, Ø16×600 mm
  • Wash Bottle. 250cc
  • An inner and an outer (J-Type) calibration pipes
  • Special Carrying Case



    Product Code

    UTC-0650

    UTC-0651

    Capacity

    7 litres

    8 litres

    Graduations

    0.1% up to 6% air

    0.2% from 6 to 8%; air

    0.5% from 8 to 15%

    Dimensions

    (all supplied items)

    320x330x630 mm

    320x330x630 mm

    Weight

    (all supplied items)

    19 kg

    20 kg



    Mass Concrete Temparature Measurement

    Product code

    UTGT-1350

    Hand Type Digital Thermometer, -50° C to 1350° C

    UTGT-1355

    Connector

    UTGT-1360

    Cable, 1 Meter

    UTGT-1352

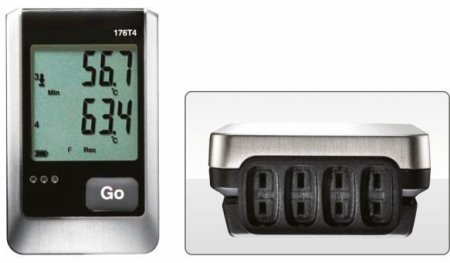

    4 Channel Digital Display Temperature Datalogger



    Information

    The products are used for monotoring of temperature development of mass concrete.  The number of measurement points for connectors and the cable length needed for each measurement point should be indicated. The products should be ordered seperately.



                UTGT-1352                        House for Thermocouple Connectors

    UTGT-1352 4 Channel Digital Display Temperature Datalogger is an alternative to UTGT-1350 and can record continuously in the time interval selected by the user. The datalogger has -195˚C to +1000˚C temp. measurement range for K Type sensors, 1s–24h data record range and 2 million data recording capacity. Battery operated data logger is supplied comğplete with acceessories such as cable for connecting to PC, software, SD card (for collecting the measurement).

    Concrete Pocket Penetrometer

    Product code

    UTC-0715

    Concrete Pocket Penetrometer



    Information

    AASHTO T197; ASTM C403



    The UTC-0715 is designed for the determination of initial setting time of fresh concrete for field and laboratory use.

    Stainless steel plunger has 32.3 mm² (1/20 in²) area and 0-5 MPa measuring range.

    The plunger graduated 0,5 MPa.



    Dimensions

    20x20x200 mm

    Weight (approx.)

    0,30 kg

    Concrete Mixer with Double Acting

    Product code

    UTC-0742

    Concrete Mixer with Double Acting, Pan Type, Frequency Controlled, 42 L.

    UTC-0752

    Concrete Mixer with Double-Acting, Pan Type, Frequency Controlled, 100 L.



    Information

    Models for 220-240V 50-60 Hz, 1ph.

    UTC-0742

    UTC-0752



    Standards

    TS EN 1766



    The difference of UTC-0742 and UTC-0752 from conventional mixers (UTC-0750, UTC-0751)  is their ability of preparing more homegenous mixture in a short time through the second motor that rotates the mixing beater in the opposite direction of the mixing drum

    To find out the effects of the different type constituents on the concrete properties requires the preparation of numerous and smaller volume of concrete batches in the laboratory. Concrete Mixer, UTC-0742, designed for this purpose has 42 liters dimensional volume of the mixing pan and 15/12 liters effective mixing capacity.

    UTC-0752 Concrete Mixer is 100 liters but the effective capacity of the mixer are is 56/40 liters.

    The turning speed of the mixers can be adjusted by a frequency controller.

    The shutter of the mixers are designed to open 120 degrees for easy access to the pan and keeps the beater in a certain height during mixing. There is a small observation window on the shutter which enables the user to monitor the process.

    The mixing pan can be tilted to empty the mixture without hassle and it can be removed for easy cleaning on completion of the mixing operation. Also the mixers are equipped with rubber wheels which provide high mobility.

    All parts of the mixer are galvanized or painted with non-corrosive paint. The protection class of mixers are IP55.



    Product Code

    UTC-0742

    UTC-0752

    Dimensions

    850x940x1100 mm

    900x1010x1300 mm

    Weight (approx.)

    240 kg

    312 kg

    Power

    3300 W

    2600 W



    Concrete Mixer Pan Type

    Product code

    UTC-0750

    Concrete Mixer Pan Type, 100L

    UTC-0751

    Concrete Mixer Pan Type, Frequency Controlled, 100 L.

    Information

    Models for 220-240V 50 Hz, 1ph.

    UTC-0750-T

    UTC-0751-T

    Models for 220-240V 60 Hz, 1ph.

    UTC-0750-K

    UTC-0751-K



    Standards

    EN 1766



    The efficient mixing of concrete is essential if quality specimens are to be manufactured. Pan Type Concrete Mixers  are designed to give efficient mixing of both dry and wet materials.

    The mixing pans are removable and tilts for easy access to the pan and emptying on completion of the mixing operation. The total volume of the pans are 100 liters but the effective capacity of the mixers are 56/40 liters.

    The turning speed of the pan of UTC- 0751 can be adjusted by a frequency controller.

    The mixer head lifts clear to provide maximum access to the pan and holds the mixing blades at a constant depth during the mixing operation. The pan type mixers are also equipped with rubber wheels which provide high portability.

    All parts of the mixers are galvanized or painted with non-corrosive paint. The protection class of the mixers are IP55.





    UTC-0750

    UTC-0751

    Dimensions

    850x940x1100 mm

    850x940x1100 mm

    Weight (approx.)

    240 kg

    240 kg

    Power

    1500 W

    1500 W

    Large Volume Concrete Mixer with Double Acting

    Product code

    UTC-0762-C

    Large Volume Concrete Mixer with Double Acting, Pan Type, 150 L, 380V 50Hz, 1ph



    Information

    TS EN 1766



    To find out the effects of the different type constituents on the concrete properties requires the preparation of numerous and higher volume of concrete batches such as RCC (Roller Compacted Concrete) and Mass Concrete which have bigger sizes coarse aggregate in the laboratory. Double Acting UTC-0762 Concrete Mixer is designed for this purpose.

    Dimensional volume of the mixing pans are 150 liters and the effective mixing capacity is 80/60 liters. The difference of UTC-0762 from conventional mixer is their ability of mixing higher volume of mixtures with the help of second engine which rotates the stirring beater in the opposite direction of the mixing pan’s rotation direction with high performance.

    The shutter of the mixer is designed to open 120 degrees for easy access to the pan and keeps the beater in a certain height during mixing. There is a observation window on the shutter which enables the user to monitor the process. Transaction of opening and closing the shutter is done by a motor.

    The mixing pan can be tilted to empty the mixture by a motor for easy cleaning on completion of the mixing operation. The height of the blades from the base of pan can be adjustable to suit the difference of coarse aggregate sizes. UTC-0762 is equipped with rubber wheels which provide high mobility.

    All parts of the mixer is galvanized or painted with non-corrosive paint. The protection class of the mixer is IP55.



    Dimensions

    1400x1600x1400 mm

    Weight (approx.)

    700 kg

    Power

    4500 W

    Cube Moulds

    Product code

    UTC-0810

    Cube Mould 100 mm, Cast Iron

    UTC-0812

    Cube Mould 100 mm, Two Gang Plastic

    UTC-0815

    Cube Mould 150 mm, Cast Iron

    UTC-0820

    Cube Mould 150 mm, Plastic

    UTC-0821

    Cube Mould 150 mm, High Quality Plastic

    UTC-0825

    Cube Mould 200 mm, Cast Iron

    UTC-0408

    Tamping Rod Ø16×600 mm

    UTC-0410

    Tamping Rod Ø10×300 mm

    UTC-0412B.E

    Compacting Bar (Square Section, 25×25 mm), Steel, 380 mm

    UTGH-1605

    Round Scoop, Medium

    UTGH-1695

    Rubber Mallet

    UTGH-1645

    Trowel



    Information

    EN 12390-1, 12390-2; BS 1881



    Cast iron and hard plastic moulds are manufactured in accordance with dimensions and tolerances stated in the relevant standard. Four part body and attached to the base with a robust clamp, the cast iron moulds are designed to be durable, corrosion resistant and easy to clean.

    UTC-0820 plastic moulds manufactured from robust plastic are one piece and easy for field use, the specimens are ejected from the moulds by compressed air.



    Product Code

    Dimensions

    Weight (approx.)

    UTC- 0810

    170x230x120 mm

    7 kg

    UTC- 0812

    120x260x120 mm

    2 kg

    UTC- 0815

    220x280x180 mm

    15 kg

    UTC- 0820

    220x280x180 mm

    3 kg

    UTC- 0821

    220x280x180 mm

    1 kg

    UTC- 0825

    220x280x180 mm

    17 kg

    Beam Moulds

    Product code

    UTC-0830

    Beam Mould 100x100x400 mm, Steel

    UTC-0832

    Beam Mould 100x100x500 mm, Steel

    UTC-0835

    Beam Mould 150x150x600 mm, Steel

    UTC-0838

    Beam Mould 150x150x750 mm, Steel

    UTC-0839

    Beam Mould, 6x6x21”, Steel, ASTM

    UTC-0840

    Beam Mould, 6x6x21”, Plastic, ASTM

    UTC-0408

    Tamping Rod Ø 16×600 mm

    UTC-0410

    Tamping Rod Ø 10×300 mm

    UTC-0412B.E

    Compacting Bar (Square Section, 25×25mm), Steel, 380 mm

    UTGH-1605

    Round Scoop, Medium

    UTGH-1695

    Rubber Mallet

    UTGH-1645

    Trowel

    Information





    Product Code

    Dimensions

    Weight (approx.)

    UTC- 0830

    150x490x150 mm

    16 kg

    UTC -0832

    160x590x150 mm

    22 kg

    UTC- 0835

    200x690x220 mm

    33 kg

    UTC- 0838

    200x840x220 mm

    44 kg

    UTC- 0839

    250x630x160 mm

    20 kg

    UTC- 0840

    170x600x160 mm

    12 kg



    Cylinder Moulds

    Product code

    UTC-0842

    Cylinder Mould Ø 100×200 mm, Steel

    UTC-0843

    Cylinder Mould Ø 100×200 mm, Plastic Body with Steel Plate

    UTC-0844

    Cylinder Mould, Ø100×200 mm, Plastic

    UTC-0845

    Cylinder Mould Ø150×300 mm, Steel

    UTC-0846

    Cylinder Mould Ø150×300 mm, Plastic Body with Steel Plate

    UTC-0847

    Cylinder Mould, Ø150×300 mm, Plastic

    UTC-0850

    Cylinder Mould Ø160×320 mm, Steel

    UTC-0851

    Cylinder Mould Ø160×320 mm, Plastic Body with Steel Plate

    UTC-0860

    Cylinder Mould Ø250×500 mm, Steel

    UTC-0408

    Tamping Rod Ø16×600 mm

    UTC-0410

    Tamping Rod Ø10×300 mm

    UTC-0412B.E

    Compacting Bar (Square Section, 25×25mm), Steel, 380 mm

    UTGH-1605

    Round Scoop, Medium

    UTGH-1695

    Rubber Mallet

    UTGH-1645

    Trowel



    Information



    Product Code Dimensions Weight (approx.)
    UTC-0842 180x140x210 mm 4 kg
    UTC-0843 150x150x200 mm 0,70 kg
    UTC-0845 220x230x310 mm 9 kg
    UTC-0846 220x220x310 mm 2 kg
    UTC-0850 250x250x330 mm 13 kg
    UTC-0851 210x210x340 mm 2 kg
    UTC-0860 150x150x250 mm 3 kg

    Vibrating Tables

    Product code

    UTC-0900E

    Vibrating Table Small, EN

    UTC-0910E

    Vibrating Table Large, EN

    UTC-0920E

    Vibrating Table, Site Type, Portable, EN

    UTC-0900A

    Vibrating Table Small, ASTM

    UTC-0910A

    Vibrating Table Large, ASTM

    UTC-0920A

    Vibrating Table, Site Type, Portable, ASTM

    Information

    Models for 220-240V 50 Hz, 1ph.

    UTC-0900E-T

    UTC-0910E-T

    UTC-0900A-T

    UTC-0910A-T

    Models for 110-120V 60 Hz, 1ph.

    UTC-0900E-N

    UTC-0910E-N

    UTC-0900A-N

    UTC-0910A-N

    Models for 220-240V 60 Hz, 1ph.

    UTC-0900E-K

    UTC-0910E-K

    UTC-0900A-K

    UTC-0910A-K



    Standards

    EN 12390–2; ASTM C192



    The UTEST fixed amplitude vibrating tables are compact units providing controlled vibro-compaction forcube or cylinder moulds. Vibrating tables consist of vibrating motor, command unit and clamping assembly.

    For laboratory use the table is availablein two alternative model. The small table accepts 2, large table accepts 6 cube or cylinder moulds by using clamping assembly.

    UTC-0900 and UTC-0910 tables can also be used for beam moulds.

    For on site applications, portable UTC-0920 Vibrating Table is designed for preparing the cube or cylinder specimens by vibration. 1 or 2 pcs. cube or cylinder mould can be clamped on the table depending on outer size of the mould to be used.

    UTC-0920 Vibration Tables are supplied complete with a converter (DC 12 to 220V).



    Product Code

    Dimensions

    Weight

    Power

    UTC-0900

    380x640x790 mm

    58 kg

    180 W

    UTC-0910

    500x1000x1050 mm

    124 kg

    180 W

    UTC-0920

    500x500x730 mm

    20 kg

    180 W



    Poker Vibrator

    Product code

    UTC-0928

    Poker Vibrator Ø 22 mm Hand-Held, 220-240 V 50-60 Hz

    UTC-0930

    Poker Vibrator Ø 22 mm, 220-240 V 50-60 Hz

    UTC-0932

    Poker Vibrator Ø 27 mm, 220-240 V 50-60 Hz

    UTC-0935

    Poker Vibrator Ø 32 mm, 220-240 V 50-60 Hz

    UTC-0938

    Cordless Concrete Vibrator, 18 V, Ø:25×1200 mm, 12.500 vpm.



    Information

    EN 12390–2; ASTM C31, C192; AASHTO T23, T126



    The Poker Vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected from the four available products.



    Product Code

    Type&Shaft

    Frequency

    UTC- 0928

    Ø22×350 mm tip-1 m shaft

    10.000 vib/min

    UTC- 0930

    Ø22×350 mm tip-2 m shaft

    12.000 vib/min

    UTC- 0932

    Ø27×370 mm tip-2 m shaft

    12.000 vib/min

    UTC- 0935

    Ø32×400 mm tip-2 m shaft

    12.000 vib/min

    UTC-0938

    Ø25-1,2 m shaft

    12.500 vib/min



    Product Code

    Dimensions

    Weight (approx.)

    UTC- 0928

    100x750x350 mm

    8 kg

    UTC- 0930

    160x850x360 mm

    14 kg

    UTC- 0932

    160x850x360 mm

    14 kg

    UTC- 0935

    160x850x360 mm

    14 kg

    UTC-0938

    300x300x350 mm

    10 kg

    Large Curing Tanks

    Product code

    UTC-0950

    Large Metal Curing Tank

    UTC-0952

    Set of Removable Upper Racks

    for UTC-0950, (6 pieces)

    UTC-0953

    Curing Tank Heater for UTC-0970

    (6,5 cm connecting channel

    and 50 cm resistance length)

    UTC-0954

    Curing Tank Heater

    for UTC-0950 and UTC-0965 (3 cm connecting channel and 50 cm resistance length)

    UTC-0955

    Circulating Pump

    UTC-0960

    Large Plastic Curing Tank

    UTC-0962

    Wide Plastic Curing Tank

    UTC-0956

    Curing Tank Heater for UTC-0960

    and UTC-0962 (6,5 cm connecting channel

    and 70 cm resistance length)



    Information

    Models for 220-240V 50-60 Hz, 1ph. UTC-0953 UTC-0954
    Models for 110-120V 60 Hz, 1ph. UTC-0953-N UTC-0954-N
    Models for 220-240V 50-60 Hz, 1ph. UTC-0955 UTC-0956
    Models for 110-120V 60 Hz, 1ph. UTC-0955-N UTC-0956-N



    Standards

    EN 12390–2; ASTM C31, C192, C511; AASHTO T23, T126

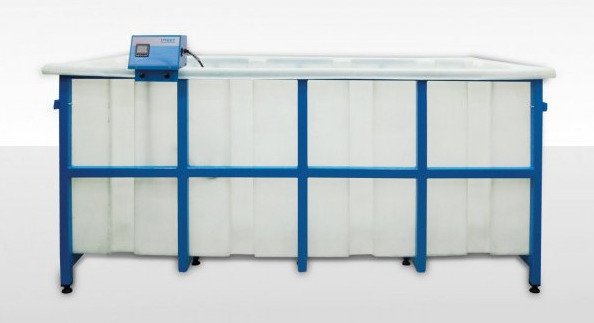

    The UTC-0950 steel, UTC-0960 and UTC-0962 Plastic Curing Tanks are designed for curing concrete cubes and cylinders. The temperature can be adjusted and can be kept constant by an electric resistance incorporating a digital thermo regulator which maintains the set temperature between ambient to 40 ºC with ± 2 ºC accuracy.

    The UTC-0950 is manufactured from powder coated sheet steel. Set of removable upper racks (6 pieces)  for UTC-0950 to hold concrete cubes are available on request. UTC-0960 and UTC-0962 plastic tanks are reinforced with a metal carcass.

    Running temperature for UTC-0955 Circulating Pump is max. 300C.

    Appropriate curing tank heater, circulating pump and UTC-0952 for UTC-0950 (in case of need )  should be ordered separately.

    UTC-0950, UTC-0960 and UTC-0962 Curing Tanks are supplied complete with a bottom metal racks.



    UTC-0960

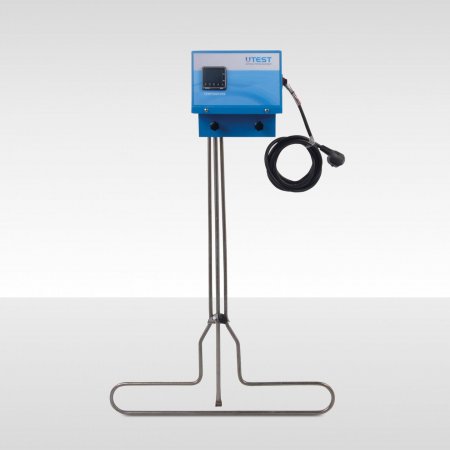

    UTC-0954                                         UTC-0952                                         UTC-0955



        UTC-0950 UTC-0960 UTC-0962

    Dimensions

    (WxLxH)

    External 870x1600x610 mm 750x1830x960 mm 1150x2150x900 mm
    Internal

    800x1500x550 mm

    (Clear Depth 500 mm)



    650x1660x850 mm

    (Clear Depth 800 mm)

    950x1950x780 mm

    (Clear Depth 740 mm)

    Specimens

    Capacity

    Cube 150 mm

    Max. 135 pcs



    Max. 200 pcs Max. 312 pcs

    Cylindrical

    Ø150×300 mm

    Max. 67 pcs Max. 100 pcs Max. 156 pcs
    Weight (approx.)

    94 kg



    110 kg 120 kg



    All Curing Tanks are supplied complete with;

    • A Base Metal Rack

    Small Curing Tanks

    Product code

    UTC-0965 Small Metal Curing Tank
    UTC-0953

    Curing Tank Heater for UTC-0970 (6,5 cm connecting channel and 50 cm resistance length)

    UTC-0954

    Curing Tank Heater for UTC-0950 and UTC-0965 (3 cm connecting channel and 50 cm resistance length)

    UTC-0955 Circulating Pump
    UTC-0970 Small Plastic Curing Tank

    Information

    Models for 220-240V 50-60 Hz, 1ph.

    UTC-0953

    UTC-0954

    UTC-0955
    Models for 110-120V 60 Hz, 1ph.

    UTC-0953-N

    UTC-0954-N

    UTC-0955-N



    Standards

    EN 12390–2; ASTM C31, C192, C511; AASHTO T23, T126



    The UTC-0965 Steel and UTC-0970 Polyurethane Small Curing Tanks are designed for curing concrete cubes and cylinders. The temperature can be adjusted to the required value and can be kept constant by an electric resistance incorporating a thermo regulator which maintains the set temperature between ambient to 40 ºC with ± 2 ºC accuracy.

    Running temperature for UTC-0955 Circulating Pump is max. 30°C.

    The UTC-0965 is manufactured from powder coated sheet steel. Appropriate curing tank heater and circulating pump should be ordered separately.



    All Curing Tanks are supplied complete with;

    • A Base Metal Rack

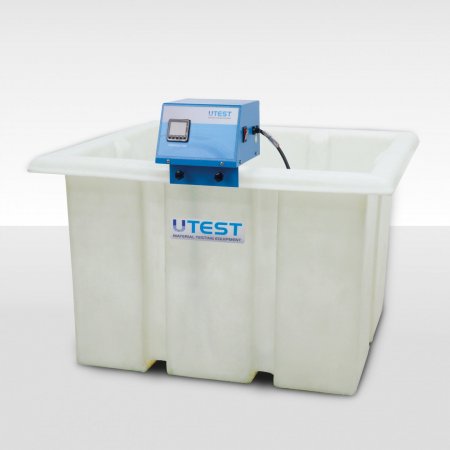

    UTC-0970





    UTC-0954                                         UTC-0955



        UTC-0965 UTC-0970

    Dimensions

    ( WxLxH )

    External 710x710x610 mm 915x1250x660 mm
    Internal

    650x650x550 mm

    (Clear Depth 500mm)

    800x1100x550 mm

    (Clear Depth 500mm)

    Specimens

    Capacity

    Cube 150 mm Max. 48 pcs Max. 84 pcs

    Cylindrical

    Ø150×300 mm

    Max. 24 pcs Max. 42 pcs
    Weight (approx.) 55 kg 60 kg

    Accelerated Curing Tanks

    Product code

    UTC-0980  Accelerated Curing Tank, Ambient to +60°C



    Information

    Models for 380 V 50 Hz, 3 ph

    UTC-0980-C

    Models for 220-240V 60 Hz, 3ph.

    UTC-0980-NC



    Standards

    ASTM C 684, C 1768 (Procedure A – Warm Water Method)

    BS 1881:Part 112  (35°C Method and 55°C Method)



    UTC-0980 Accelerated Curing Tank is designed for curing concrete specimens according to ASTM C1768  (Procedure A – Warm Water Method) and BS 1881:Part 112 (35°C Method and 55°C Method).

    The Tank consists of an insulated rectangular double walled metal chamber inside lined with stainless steel outer powder coated, an insulated lid with lifting handle to cover the chamber and an stainless steel perforated platform  for circulation of water and to support the concrete specimens.

    The tank works ambient to +60°C temperature. The temperature is controlled with closed loop PID controlled digital thermoregulator with accuracy of ±2°C. Curing temperature and curing time can also be set.



    External Dimensions

    820x1180x1000 mm

    Internal Dimensions

    640x900x700 mm

    Weight (approx.)

    210 kg

    Power

    4500 W

    Current (UTC-0980)

    20 Ampere

    Universal Coring Machines

    Product code

    UTGD-0290

    Universal Coring Machine,

    Coring Range 200 mm, 220-240 V 50-60 Hz

    UTGD-0310

    Universal Coring Machine,

    Coring Range 25-202 mm, 220-240 V 50-60 Hz

    UTGD-0320

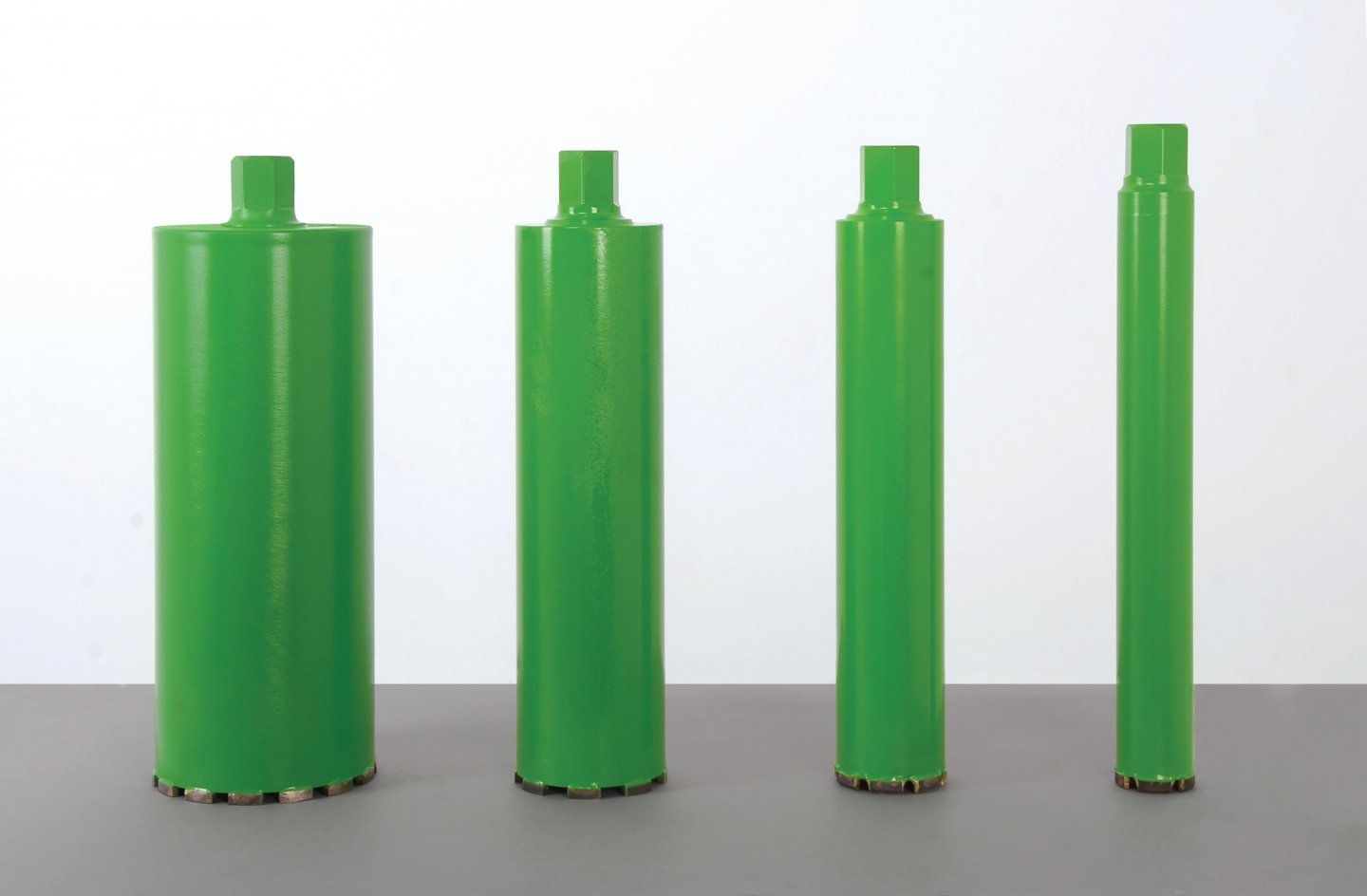

    Coring Bit for Concrete Sampling 50 mm dia.

    400 mm Length

    UTGD-0320H

    Coring Bit for Concrete Sampling 50 mm dia.

    320 mm Length

    UTGD-0322

    Coring Bit for Concrete Sampling 75 mm dia.

    400 mm Length

    UTGD-0322H

    Coring Bit for Concrete Sampling 75 mm dia.

    320 mm Length

    UTGD-0324

    Coring Bit for Concrete Sampling 98 mm dia.

    400 mm Length

    UTGD-0324H

    Coring Bit for Concrete Sampling 98 mm dia.

    320 mm Length

    UTGD-0326

    Coring Bit for Concrete Sampling 150 mm dia.

    400 mm Length

    UTGD-0326H

    Coring Bit for Concrete Sampling 150 mm dia.

    320 mm Length

    UTGD-0328

    Coring Bit for Concrete Sampling 200 mm dia.

    400 mm Length

    UTGD-0328H

    Coring Bit for Concrete Sampling 200 mm dia.

    320 mm Length

    UTGD-0330

    Coring Bit for Asphalt Sampling 50 mm dia.

    400 mm Length

    UTGD-0330H

    Coring Bit for Asphalt Sampling 50 mm dia.

    320 mm Length

    UTGD-0332

    Coring Bit for Asphalt Sampling 75 mm dia.

    400 mm Length

    UTGD-0332H

    Coring Bit for Asphalt Sampling 75 mm dia.

    320 mm Length

    UTGD-0334

    Coring Bit for Asphalt Sampling 100 mm dia.

    400 mm Length

    UTGD-0334H

    Coring Bit for Asphalt Sampling 100 mm dia.

    320 mm Length

    UTGD-0336

    Coring Bit for Asphalt Sampling 150 mm dia.

    400 mm Length

    UTGD-0336H

    Coring Bit for Asphalt Sampling 150 mm dia.

    320 mm Length



    Information

    The UTGD-0290 (2500 W) and UTGD-0310 (2200 W) Universal Coring Machines are powerful diamond drilling units serve for shock free wet drilling into concrete, natural stone and asphalt with coring diameter max. 200 mm for UTGD-0290 and coring diameter ranges 25-202 mm for UTGD-0310 respectively. Both models are optimal complements to handheld diamond drilling machines.

    Coring bit should be ordered separately.



    The Universal Coring Machine consists of

    • Drilling Motor
    • Drill Stand with Motor Cradle
    • Mounting Apparatus (between drilling motor and the cradle)



    UTGD–0336     UTGD–0334    UTGD–0332   UTGD–0330



    SPECIFICATIONS UTGD – 0290 UTGD – 0310
    Power 2500 W 2200 W
    Class of Protection I I
    Drilling Diameter max. 200 mm 25-202 mm
    Speed (No-Load) 675 r.p.m. 460/760/1690 r.p.m.
    Dimension 500x300x1150 mm 500x300x1150 mm
    Weight (approx.) 15,5 kg 16 kg



    Universal Cutting Machine

    Product code

    UTC-1020 Universal Cutting Machine with Safety Cabinet Junior, 220-240V 50-60 Hz, 1 ph
    UTC-1022 Cutting Blade Ø450 mm
    UTC-1024 V Shaped Holder with Fixing Mechanism between Ø110mm to Ø160mm diameter specimens for UTC-1020

    Information

    EN 12390–3, 12504-1; ASTM C42, D4543



    The Universal Cutting Machine has been developed to cut for preparing concrete, rock or natural stone, cores for compressive strengt test.

    Special clamp assembly allows specimens to be held during cutting operation. The machine is supplied complete with “V shaped holder with fixing mechanism between Ø38mm to Ø110mm diameter specimens and a water circulation pump.

    Cutting Blade and V shaped holder with fixing mechanism for Ø110mm to Ø160mm specimens should be ordered separately.



    UTC-1020 Junior

    Blade Diameter

    450 mm

    Power

    2,2 kW

    Max. Cutting Height

    185 mm

    Cooling

    Wayer recirculation pump

    Dimensions (lxwxh)

    1100x900x1550 mm

    Weight

    196 kg

    Automatic Grinding Machine

    Product code

    UTC-1040

    Automatic Grinding Machine

    UTC-1042

    Grinding Wheel for UTC-1040

    UTC-1044

    Water Restraint Panel Set for Cylinder Specimens for UTC-1040

    UTC-1047

    Cradle and Water Restraint Panel for three units of 100 mm cube specimens for UTC-1040

    UTC-1048

    Water Restraint Panel for Ø160 mm Cylinder  specimen for UTC-1040

    UTC-1049

    Cradle and Water Restraint Panel for one unit of 150 mm Cube Specimens for UTC-1040



    Information

    Models for 220-240V 50-60 Hz, 1ph.

    UTC-1040

    UTC-1064

    Models for 110-120V 60 Hz, 1ph.

    UTC-1040-N

    UTC-1064-N



    Standards

    EN 12390-1, 12390-3, 12504-1; ASTM C 31, C39, C42, C192, C617



    The UTC-1040 Automatic Grinding Machine provides fast grinding of cylinder specimen ends to obtain plane and parallel surfaces according to EN and ASTM standards.

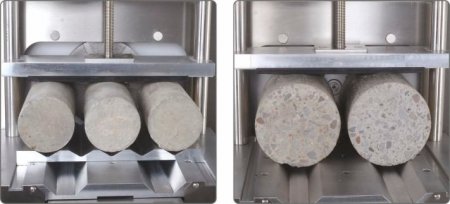

    Three units of Ø38 to 100 mm or two units of Ø150-160 mm concrete cylinders ends and three units of 100 mm or one unit of 150 mm concrete cubes faces can be ground simultaneously with the suitable cradle and water restraint panel. The lenght of the any specimen must be longer than 110 mm.

    According to ASTM and EN standards, the planeness accuracy of grinded surfaces of concrete compression test specimens should be 0.05 mm. and also the deviation of perpendicularity of the side with reference to the end faces should be 0,5°.

    The equipment has selectable advance grinding time functionality by user from 50 to 400 seconds. Optimum grinding time per end of all type specimens is 90 to 120 seconds.

    The cradle which specimens are fixed on has automatic bidirectional radial displacement ability. The safe and ergonomic design prevents the user to exposure to water and dust and provides easy access to the water inlet and outlet. Specimen cradles and water restraint panels can easily be installed without the need for any assembly.

    Mobility of the machine is achieved with the help of the integral wheels, and all components of the system can be safely accessed for easy maintenance.

    The frame is manufactured from aluminum to obtain a lighter weight and the stainless steel exterior shell assures resistance to corrosion.

    UTC-1044 Water Restraint Panel Set for Cylinder consist of panels for Ø150 mm, Ø100 mm and Ø50 mm specimens. For different sized cylindrical specimens, the water restraint panel should be ordered seperately.

    The cradle and the water restraint panels should be ordered seperately for 100mm and 150mm cubic specimens.



    The Automatic Grinding Machine is supplied complete with;

    • Grinding Wheel for concrete specimens
    • Cradle for Ø:38mm to100 mm cylindrical specimens
    • Cradle for Ø:150mm to160 mm cylindrical specimens (connected to the machine)
    • Water restraint panel set (Consist of panels for Ø150, Ø100 and Ø50 mm specimens)



    The Preparation of Concrete

    Cylinder Test Specimen for

    Compressive Strength Test

    EN 12390-1, 12390-3

    ASTM C31, C39, C192,

    C617

    The maximum tolerance on the flatness of the potential load bearing surfaces

    (the ends of compression test specimens)

    is 0.002 in. [0.050 mm]

    The deviation of perpendicularity of the side,

    with reference to the end faces is 0,5O

    The Preparation of Drilled

    Concrete Cores Specimen for

    Compressive Strength Test

    EN 12504-1, 12390-1,

    12390-3 ASTM C42,

    C397



    Dimensions

    680x1100x1600 mm

    Weigth (approx.)

    260 kg

    Power

    1850 W



    Automatic Grinding Machine with Cabinet

    Product code

    UTC-1060

    Automatic Grinding Machine with Cabinet

    UTC-1062

    Grinding Wheel for UTC-1060

    UTC-1064

    Water Tank with Filtration and Circulation System for UTC-1060

    UTC-1067

    Cradle for Three Units of 100 mm Cube Specimens for UTC-1060

    UTC-1069

    Cradle for One Unit of 150 mm Cube Specimens for UTC-1060

    Information

    Models for 220-240V 50-60 Hz, 1ph.

    UTC-1060

    UTC-1064

    Models for 110-120V 60 Hz, 1ph.

    UTC-1060-N

    UTC-1064-N



    Standards

    EN 12390-1, 12390-2, 12390-3, 12504-1; ASTM C 31, C39, C42, C192, C617, D4543



    The UTC-1060 Automatic Grinding Machine with Cabinet provides fast grinding of concrete, rock, natural stone. etc. specimens to obtain plane and parallel surfaces according to EN and ASTM standards.

    The Machine;

    • Five units of Ø38 mm to Ø50 mm cylinders ends,
    • Three units of Ø70 mm to Ø110 mm cylinders ends,
    • Two units of Ø110 mm to Ø160 mm cylinders ends,
    • Three units of 100 mm cubes faces,
    • One unit of 150 mm cubes faces

    can be ground simultaneously with the suitable cradle.The lenght of the any specimen must be ≥70mm

    According to ASTM and EN standards, the planeness accuracy of grinded surfaces of concrete compression test specimens should be 0.05 mm. and also the deviation of perpendicularity of the side with reference to the end faces should be 0,5°.

    The equipment has selectable advance grinding time functionality by user from 50 to 400 seconds. Optimum grinding time per end of all type specimens is 90 to 120 seconds.

    The specimens fixed to the any cradle are abraded by the grinding wheel which has bidirectional radial displacement ability

    The safe and ergonomic design prevents the user to exposure to water and dust and provides easy access to the water inlet and outlet.Specimen cradles can easily be installed without the need for any assembly.

    Mobility of the machine is achieved with the help of the integral wheels, and all components of the system can be safely accessed for easy maintenance.

    The parts exposed to water are made of stainless steel to resist corrosion.

    UTC-1064 Filtration and Circulation System Water Tank is designed to save the amount of water used during the grinding process in the automatic grinding machine(UTC-1060).If UTC-1064 is supplied with the grinding machine, it is automatically activated when the grinding process starts and filtration and circulation begin simultaneously.

    The cradle for 100mm or 150mm cube specimens should be ordered seperately.





    The Automatic Grinding Machine is supplied complete with;

    • Grinding Wheel for concrete specimens
    • Cradle for Ø:38mm to110 mm cylindrical specimens
    • Cradle for Ø:110mm to160 mm cylindrical specimens (connected to the machine)



    The preparation of concrete

    cylinder test specimen for

    compressive strength test

    EN 12390-1, 12390-3

    ASTM C31, C39, C192,

    C617

    The maximum tolerance on the flatness of the potential load bearing surfaces

    (the ends of compression test specimens)

    is 0.002 in. [0.050 mm]

    The preparation of drilled

    concrete cores specimen for

    compressive strength test

    EN 12504-1, 12390-1,

    12390-3 ASTM C42,

    C397

    The deviation of perpendicularity of the side,

    with reference to the end faces is 0,5O



    UTC-1060
    Dimensions 800x1265x1652 mm
    Weight (approx.) 350 kg
    Power 1850 W

    Impermeability Test Sets

    Product code

    UTC-1080

    Impermeability Test Set with Quantitative Measurement Equipment, 3 Specimen Capacity

    UTC-1082

    Impermeability Test Set without Quantitative Measurement Equipment, 3 Specimen Capacity

    UTC-1090

    Impermeability Test Set with Quantitative Measurement Equipment, 6 Specimen Capacity

    UTC-1092

    Impermeability Test Set without Quantitative Measurement Equipment, 6 Specimen Capacity

    UTGE-3700

    Laboratory Air Compressor 15 bar, 380 V 50 Hz



    Information

    EN 12390-8



    Used for the determination of the depth of penetration of water to hardened concrete specimens under pressure.

    3 or 6 specimen capacity models and with and without quantitative measurement equipment of water penetratoion models are available.

    The system can test 150 mm and 200 mm cube specimens, Ø100×200 and Ø150×300 mm cylinder specimens.

    Up to 10 bar of working pressure is generated on the sample with compressed air applied to the integral water tank and controlled by a pressure regulator with a pressure gauge with 0,2 bar graduations.

    The test sets with the quantitative measurement equipment of water penetratoion the penetration of water is measured through the burettes.

    The system comprises impermeability gaskets for every cell.

    The measurement apparatus is supplied as standard. The apparatus has to be fitted with a suitable air compressor.

    The Air Compressor should be ordered separately.

    Compressed air controlled by a pressure regulator with a pressure gauge with 0,2 bar graduations.





    Dimensions

    Weight (approx.)

    UTC-1080

    520x1430x1800 mm

    144 kg

    UTC-1082

    520x1430x1320 mm

    114 kg

    UTC-1090

    520x1430x1800 mm

    204 kg

    UTC-1092

    520x1430x1320 mm

    174 kg

    Original Schmidt Concrete Test Hammer N Type (Proceq)

    Product code

    UTC-3032

    Original Schmidt Concrete Test Hammer N Type (Proceq)

    UTC-3040E

    Calibration Anvil

    Information

    EN 12504-2, 13791; ASTM C 805, C 5873; BS 1881:202; NFP18-417;

    DIN 1048 part 2; UNI 9189; ISO 8045; B 15-225; JGJ/T 23-2001

    JJG 817-1993



    The quality of concrete is mainly judged by its compressive strength directly affecting the load-bearing capacity and durability of concrete structures.

    UTC-3032 Concrete Test Hammer (Original Schmidt Type N – Proceq) is used to measure the compressive strength characteristics of hardened concrete non-destructively, control uniform concrete quality and detect weak spots in the concrete. The test object should have a minimum thickness of 100 mm (3.9 in).

    The impact area of UTC-3040 Calibration Anvil used for the calibration of concrete test hammers is hardened minumum 52HRC.



    Features

    • Type N Original Schmidt: Rebound values are read from a scale for subsequent calculation of the  mean. Compressive strength values can be read from a conversion diagram
    • Type NR Original Schmidt: Rebound values are recorded as a bar chart on a paper strip which has a  capacity for 4’000 test impacts



    Product Code

    Dimensions

    Weight (approx.)

    UTC-3032

    340x120x120 mm

    2 kg

    UTC-3040E

    150x150x230 mm

    16 kg



    Measuring Range

    10-80 N/mm2

    Impact Energy

    2.207 Nm



    Ultrasonic Pulse Velocity Tester

    Product code

    UTC-3034

    Ultrasonic Pulse Velocity Tester



    Information

    EN 12504-4; ASTM C 597



    Ultrasonic Pulse Velocity Tester is used to measure the velocity of propagation of ultrasonic pulses through concrete. A pulse of longitudinal vibrations is produced by an electro-acoustical transducer held in contact with one surface of the concrete under test. After traversing a known path length in the concrete, the pulse of vibrations is converted into an electrical signal by a second transducer and electronic timing circuits enable the transit time of the pulse to be measured.

    BS EN 12504-4:2004 gives guidance on testing fresh concrete, hardened concrete and concrete in structures. It specifies a method for the determination of the velocity of propagation of pulses of ultrasonic longitudinal waves in concrete.

    The measurement of pulse velocity can be used for the determination of the uniformity of concrete, the presence of cracks or voids, changes in properties with time and in the determination of dynamic physical properties.

    UTC-3034 Ultrasonic Pulse Velocity Tester is a microprocessor incorporated equipment which can be connected to a PC through the RS 232 output. It can also be connected to an oscilloscope and can perform transit time measurement from 0.1 to 1999.9 μs with a resolution of 0.1 μs. The battery operated equipment has a transmitter output of 800 V and a battery life of 18 hours of activity.



    The Ultrasonic Pulse Velocity Tester is supplied complete with;

    • Two 54 KHz transducers (Transmitter and Receiver) with 3 m cable
    • Calibration rod
    • Coupling agent (250 mm)
    • Carrying case



    Dimensions

    240x120x75 mm

    Weight (approx.)

    1,3 kg

    Mechanical Strain Gauge

    Product code

    UTC-3110

    Mechanical Strain Gauge 100 mm Measuring Base

    UTC-3130

    Mechanical Strain Gauge 300 mm Measuring Base

    UTGM-0190

    Serial Cable for PC Connection

    UTC-3122

    Datum Discs. Pack of 50 Pieces

    UTC-3123

    Adhesive Tube, 20 g.

    Information

    BS 1881:206



    UTC-3110 and UTC-3130 Mechanical Strain Gauges are used for determining the length changes in different parts of a structure. These strain gauges are especially designed to perform measurement on concrete structures but they are also suitable to be used for any other type of structure including steel.

    Measurin base for UTC-3110 is 100×5 mm range and for UTC-3130 is 300×5 mm range Suitable model should be chosen according to the standard length to be measured. Digital gauge for both models has 0.001 mm resolution an output for PC connection . Serial cable for PC connection should be ordered seperately.

    Each model is supplied as a complete set which consists of extensometer with digital gauge, standard bar, calibration bar, No. 50 datum discs, adhesive compound for datum discs and carrying case.



    Dimensions

    300x400x110 mm (packed)

    Weight (approx.)

    2.5 kg



    Digital Bond Strenght /Pull-off Tester

    Product code

    UTC-3250

    Digital Bond Strenght /Pull-off Tester



    Information

    EN 1015-12, 1348, 1542, 12616-2, 13963, 14496



    16 kN measurement capacity apparatus is used for determining of bond/pull-off strenght of repair mortar, hardened rendering, plastering, etc.

    The apparatus is basically a dynamometer fitted with a load cell and high resolution digital display unit. The direct tensile force is applied by rotating the hand wheel.

    MAIN FEATURES
    • Portable equipment for use in any location
    • High resolution digital display unit
    • Graphic indication of applied load rate
    • Serial port for PC connection
    • Battery operated, complete with AC adapter
    • Indicator of ram position allowing an estimation of the brittle properties of the test sample
    • Supplied complete with traceable calibration certificate Supplied complete with carrying case. Each  one of the accessories given below should be ordered separately



    UTC-3254

    Drill bit with centering point to obtain, 50 mm dia. test surface

    UTC-3256

    Drill bit with centering point to obtain, 20 mm dia. test surface

    UTC-3257

    Metal ring (dinking die), 50 mm int. dia, 25 mm high, for fresh plaster, to EN 1015-12

    UTC-3258

    Aluminium Test Disc, 50 mm dia

    UTC-3260

    Aluminium Test Disc, 20 mm dia.

    UTC-3262

    Test square plate, aluminium, 50x50mm, conforming to EN 1348

    UTC-3264

    Serial Cable for PC connection

    UTC-3266

    Stainless steel test disc 50mm dia. x 20mm thickness. (conforming to EN 1015-12)

    UTC-3268

    Adhesive Bicomponent. 2x15ml binder and 2x15ml hardener (4 vials)

    Technical Specifications

    Load capacity

    16 kN

    Readout unit

    Load cell

    Resolution

    10 N

    Working range

    0.25 to 16 kN

    Accuracy

    better than ± 1%

    Battery

    9 V



    Dimensions

    340x240x250 mm approx.

    Weight

    5 kg with carrying case, 3.3 kg tester only

    Digital Rebar Pull-Out Force Tester

    Product code

    UTC-3190

    Digital Rebar Pull-Out Force Tester with Steel Hydrolic Cylinder, 10 tons Capacity

    UTC-3210

    Digital Rebar Pull-Out Force Tester with Steel Hydrolic Cylinder, 30 tons Capacity

    Information

    The Apparatus are used for determining the bond strength between anchored reinforcing steel bar (rebar) and concrete and for checking anchorage performance in-situ. LPI Battary Operated Digital Readout Unit connected to a 30 tons capacity hydraulic jack and hand pump provides 1 % sensitive load or tensional strength value readings.

    UTC-3190 Digital Rebar Pull-Out Force Tester have a steel hydrolic cylinder. UTC-3210 Digital Rebar Pull-Out Force Tester has an Steel hydrolic cylinder for ease of handling.

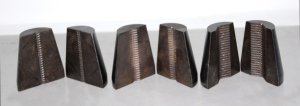

    The apparatus is supplied complete with three different jaw sets which allows user to test anchorage rebar with different diameters. These jaws are made of high strength steel.

    UTC-3190 is supplied complete with two jaw sets for 4-8mm, and 10-16m dia. rebars UTC-3210 are supplied complete with three jaw sets for 4-8mm, 8-20mm and 20-28mm dia. rebars.





      UTC-3190 UTC-3210
    Working ability 10 tons 30 tons
    Rebar diameters can be tested Up to 16mm Up to 28
    Tension journey (stroke) 50 mm 50 mm
    Dimensions 300x1050x300 mm 300x1050x300 mm
    Weight (approx.) 30 kg 30 kg
