Drying, Weighing, Grading
Ovens, balances, and test sieves are common equipment for the testing of construction materials. We have a wide range of models that satisfy the requirements of related EN, ASTM, AASHTO, ISO standards for drying, weighting, and grading.
Laboratory Ovens
Product code
UTD1295
Laboratory Oven 50 L
UTD1300
Laboratory Oven 120 L
UTD1305
Laboratory Oven 250 L
UTD1310C
Laboratory Oven 500 L
UTD1315C
Laboratory Oven 700 L
Standarts
Models for 220240V 5060 Hz, 1ph.
UTGE1295
UTGE1300
UTGE1305
Models for 110120V 60 Hz, 1ph.
UTGE1295N
UTGE1300N
UTGE1305N
Models for 380 V, 50 Hz, 3ph
UTGE1310C
UTGE1315C

Models for 220V, 60Hz, 3ph.
UTGE1310NC
UTGE1315NC

EN 9325, 10975; ASTM C127, C136, D558, D559, D560, D698, D1557, D1559 BS 1377:1, 1924:11; UNE 103300
UTEST UTD Series Laboratory Ovens have been designed for drying asphalt, soil, rock, concrete, aggregate or similar materials. 50, 120, 250, 500 and 750 liter capacity models are available. Temperature range is from ambient to 200°C. The interior is manufactured from stainless steel and the exterior is robustly constructed from sheet steel finished in powder coated paint.
All models are fan circulated (forced convection), fitted with direct reading digital control unit and equipped with PID digital control system, isolated double wall construction, gasket single door and heating elements designed into air channels.
Product Code
Internal Dimension
External Dimension
Weight (approx.)
Adjustable Shelves

UTD1295
360x350x410 mm
570x610x600 mm
50 kg
2 pcs.
UTD1300
400x500x610 mm
660x750x770 mm
57 kg
2 pcs.
UTD1305
570x600x800 mm
800x850x1020 mm
95 kg
3 pcs.
UTD1310
580x790x1100 mm
800x920x1410 mm
127 kg
4 pcs.
UTD1315
570x890x1400 mm
800x1000x1600 mm
185 kg
5 pcs.
Freezing and Thawing Chambers for Slab Tests
Product code
UTD1440
Freezing and Thawing Chamber for Slab Tests 280 L
UTD1442
Freezing and Thawing Chamber for Slab Tests 500 L
Information
Models for 220240 V 5060 Hz, 1ph.
UTD1440
UTD1442
Models for 110120 V 60Hz, 1ph.
UTD1440N
UTD1442N
Standards
EN 1338, 1339, 1340, 13676, 137482, CEN/TS 123909 (Slab Test)
UTD1440 and UTS1442 are used for the determination of resistance to freezing and thawing of the construction materials.

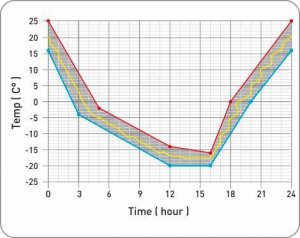

The chambers are equipped with a user defined program including up to 16 steps. Time can be adjusted to 999 minutes for each step of the program. The temperature range of the cabinet is 30°C to +65°C.
The temperature is controlled by a sensor which can be immersed either into the sample, or into the water which the sample is placed into or into the salty water solution placed on the sample before starting the test. The calibration of the sensor is carried out using the user friendly menu.
The distribution of temperature in the cabinets are performed using an integral fan.
Free of charge Utest Software for transfering the data realtime to a computer is supplied complete with the cabinet and data can be monitored during the tests. Data can be converted to an excel report or to a graph.
The condenser of the cabinets are fitted with an air cooled hermetic cooler. The gas used for the cooler does not include CFC’s.
The control unit is electronic and equipped with digital display with 0.1°C temperature resolution. The accuracy of cabin temperature distribution lower than 2°C.

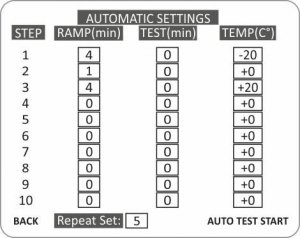

The user can preset the time and target temperature of each ramp and the number of each set by using the control unit.
UTD1440 and UTD1442 Freezing and Thawing Chambers are supplied complete with 3 pcs. displaceable shelves and a Utest software yazılım (USOFT1440).
The control unit is electronic and equipped with digital display with 0.1°C temperature resolution.
The user can preset the time and target temperature of each ramp and the number of each set by using the control unit.
Product Code
UTD1440
UTD1442

Internal Dimensions
460x480x1260 mm
581x685x1500 mm
External Dimensions
600x600x1900 mm
702x807x2050 mm
Weight (approx.)
100 kg
150 kg
Specific Gravity Frames
Product code
UTW1000
Specific Gravity Frame
UTW1003
Plastic Water Tank
UTW1005
Cradle for Hardened Concrete Specimens
UTW1008
Density Basket, 120 mm dia x 160 mm deep, 3.35 mm stainless steel mesh
UTW1010
Density Basket Ø 200 mm x 200 mm 3.35 mm stainless steel mesh
UTW1012
Density Basket, 250 mm dia x 250 mm 3.35 mm (No.6) stainless steel mesh
UTW1015
Density Basket, 200 mm dia x 180 mm 2.00 mm (No:10) stainless steel mesh
Information
EN 10976, 123907; ASTM C127; AASHTO T85; BS 8122
The UTW1000 Specific gravity framework is used to find the volume occupied by the aggregate in various mixtures containing coarse aggregates, with the aid of a scale and a wire basket.It is also used to find the volume of irregularly shaped natural stone and similar materials.
The lower part of the frame incorporates a moving platform, which carries the water tank allowing the test specimens to be weighed in both air and water.
The frame can be used with any type of electronic balance fitted with underbench weighing facility
Balance, cradle and density basket should be ordered separately.

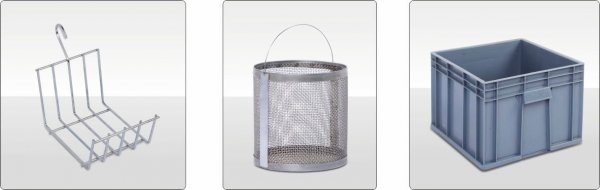

The Specific Gravity Frame is supplied complete with;
 A water tank
UTW1005 UTW1010 UTW1003
Dimensions
400x560x1000 mm

Weight (approx.)
26 kg

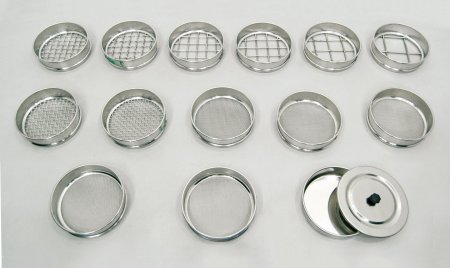

Testing Sieves – UTEST
Product code
Testing Sieves – UTEST
Information
EN 9332; ISO 565, 33101, 33102
UTEST offers a wide range of High Quality Testing Sieves which are used in all types of sieve testing applications, from sampling and classification of soils, aggregates and other powdered and granular materials. UTEST testing sieves are of the highest quality to ensure consistent fit, accurate specifications and durable construction.
Woven Wire Cloth and Perforated Plate Sieves are supplied in 200 mm and 300 mm frame diameters in various nominal aperture sizes suitable for several applications and standards.
Wet Washing Sieves are used for wet testing of various materials enabling to wash the fines through the sieve without losing any of the sample. Wet Washing Sieves are available in 200 mm diameter with 100 mm and 200 mm deep models.
All parts of testing sieves are manufactured from stainless steel. Receiving Pans and Lids are available in stainless steel with 200 mm and 300 mm diameters.
ISO 33102 Perforated Plate Sieves

Nominal Aperture Size
Ø 200 mm x 50 mm
Ø 300 mm x 75 mm
Product Code
Product Code

125 mm
UTG2PSIC1250.Y
UTG3PSIC1250.Y
106 mm
UTG2PSICI060.Y
UTG3PSIC1060.Y
100 mm (4”)
UTG2PSICI000.Y
UTG3PSIC1000.Y
90 mm (3½”)
UTG2PSIC0900.Y
UTG3PSIC0900.Y
80 mm
UTG2PSIC0800.Y
UTG3PSIC0800.Y
75 mm (3”)
UTG2PSIC0750.Y
UTG3PSIC0750.Y
63 mm (2½”)
UTG2PSIC0630.Y
UTG3PSIC0630.Y
56 mm
UTG2PSIC0560.Y
UTG3PSIC0560.Y
53 mm (2.12”)
UTG2PSIC0530.Y
UTG3PSIC0530.Y
50 mm (2”)
UTG2PSIC0500.Y
UTG3PSIC0500.Y
45 mm (1¾”)
UTG2PSIC0450.Y
UTG3PSIC0450.Y
40 mm
UTG2PSIC0400.Y
UTG3PSIC0400.Y
37.5 mm (1½”)
UTG2PSIC0375.Y
UTG3PSIC0375.Y
31.5 mm (1¼”)
UTG2PSIC0315.Y
UTG3PSIC0315.Y
28 mm
UTG2PSIC0280.Y
UTG3PSIC0280.Y
26.5 mm (1.06”)
UTG2PSIC0265.Y
UTG3PSIC0265.Y
25 mm (1”)
UTG2PSIC0250.Y
UTG3PSIC0250.Y
22.4 mm (7/8”)
UTG2PSIC0224.Y
UTG3PSIC0224.Y
20 mm
UTG2PSIC0200.Y
UTG3PSIC0200.Y
19 mm (¾”)
UTG2PSIC0190.Y
UTG3PSIC0190.Y
18 mm
UTG2PSIC0180.Y
UTG3PSIC0180.Y
16 mm (5/8”)
UTG2PSIC0160.Y
UTG3PSIC0160.Y
14 mm
UTG2PSIC0140.Y
UTG3PSIC0140.Y
13.2 mm (.530”)
UTG2PSIC0132.Y
UTG3PSIC0132.Y
12.5 mm (½”)
UTG2PSIC0125.Y
UTG3PSIC0125.Y
11.2 mm (7/16”)
UTG2PSIC0112.Y
UTG3PSIC0112.Y
10 mm
UTG2PSIC0100.Y
UTG3PSIC0100.Y
9.5 mm (3/8”)
UTG2PSIC0095.Y
UTG3PSIC0095.Y
9 mm
UTG2PSIC0090.Y
UTG3PSIC0090.Y
8 mm (5/16”)
UTG2PSIC0080.Y
UTG3PSIC0080.Y
7.1 mm
UTG2PSIC0071.Y
UTG3PSIC0071.Y
6.7 mm (.265”)
UTG2PSIC0067.Y
UTG3PSIC0067.Y
6.3 mm (¼”)
UTG2PSIC0063.Y
UTG3PSIC0063.Y
5.6 mm (No. 3½”)
UTG2PSIC0056.Y
UTG3PSIC0056.Y
5 mm
UTG2PSIC0050.Y
UTG3PSIC0050.Y
4.75 mm (No. 4)
UTG2PSIC0047.Y
UTG3PSIC0047.Y
4 mm (No. 5)
UTG2PSIC0040.Y
UTG3PSIC0040.Y
Wet Washing Sieves


Nominal Aperture Size
Ø 200 mm x 200 mm
Ø 200 mm x 100 mm
Product Code
Product Code

150 μm (No.100) 75 μm (No.200) 63 μm (No.230)
2WH0150200.Y 2WH0075200.Y 2WH0063200.Y
2WH0150100.Y 2WH0075100.Y 2WH0063100.Y
Pan and Cover (Stainless Steel)


Ø 200 mm x 50 mm
Ø 300 mm x 75 mm

Product Code
Product Code

Pan and Cover Pan Cover
UTG2001.Y UTG2002.Y UTG2003.Y
Pan and Cover Pan Cover
UTG4001.Y UTG4002.Y UTG4003.Y
ISO 33101 Woven Wire Cloth Sieves

Nominal Aperture Size
Ø 200 mm x 50 mm
Ø 300 mm x 75 mm
Product Code
Product Code

125 mm
UTG2WSIC1250.Y
UTG3WSIC1250.Y
100 mm (4”)
UTG2WSIC1000.Y
UTG3WSIC1000.Y
90 mm (3 ½”)
UTG2WSIC0900.Y
UTG3WSIC0900.Y
80 mm
UTG2WSIC0800.Y
UTG3WSIC0800.Y
75 mm (3”)
UTG2WSIC0750.Y
UTG3WSIC0750.Y
63 mm (2 ½”)
UTG2WSIC0630.Y
UTG3WSIC0630.Y
56 mm
UTG2WSIC0560.Y
UTG3WSIC0560.Y
53 mm (2.12”)
UTG2WSIC0530.Y
UTG3WSIC0530.Y
50 mm (2”)
UTG2WSIC0500.Y
UTG3WSIC0500.Y
45 mm (1 ¾”)
UTG2WSIC0450.Y
UTG3WSIC0450.Y
40 mm
UTG2WSIC0400.Y
UTG3WSIC0400.Y
37.5 mm (1½”)
UTG2WSIC0375.Y
UTG3WSIC0375.Y
31.5 mm (1 ¼”)
UTG2WSIC0315.Y
UTG3WSIC0315.Y
28 mm
UTG2WSIC0280.Y
UTG3WSIC0280.Y
26.5 mm (1.06”)
UTG2WSIC0265.Y
UTG3WSIC0265.Y
25 mm (1”)
UTG2WSIC0250.Y
UTG3WSIC0250.Y
22.4 mm (7/8”)
UTG2WSIC0224.Y
UTG3WSIC0224.Y
20 mm
UTG2WSIC0200.Y
UTG3WSIC0200.Y
19 mm (¾”)
UTG2WSIC0190.Y
UTG3WSIC0190.Y
16 mm (5/8”)
UTG2WSIC0160.Y
UTG3WSIC0160.Y
14 mm
UTG2WSIC0140.Y
UTG3WSIC0140.Y
13.2 mm (.530”)
UTG2WSIC0132.Y
UTG3WSIC0132.Y
12.5 mm (½”)
UTG2WSIC0125.Y
UTG3WSIC0125.Y
11.2 mm (7/16”)
UTG2WSIC0112.Y
UTG3WSIC0112.Y
10 mm
UTG2WSIC0100.Y
UTG3WSIC0100.Y
9.5 mm (3/8”)
UTG2WSIC0095.Y
UTG3WSIC0095.Y
8 mm (5/16”)
UTG2WSIC0080.Y
UTG3WSIC0080.Y
6.7 mm (.265”)
UTG2WSIC0067.Y
UTG3WSIC0067.Y
6.3 mm (¼”)
UTG2WSIC0063.Y
UTG3WSIC0063.Y
5.6 mm (No. 3 ½)
UTG2WSIC0056.Y
UTG3WSIC0056.Y
5 mm
UTG2WSIC0050.Y
UTG3WSIC0050.Y
4.75 mm (No.4)
UTG2WSIC0047.Y
UTG3WSIC0047.Y
4 mm (No.5)
UTG2WSIC0040.Y
UTG3WSIC0040.Y
3.35 mm (No. 6)
UTG2WSIF3350.Y
UTG3WSIF3350.Y
3.15 mm
UTG2WSIF3150.Y
UTG3WSIF3150.Y
2.8 mm (No. 7)
UTG2WSIF2800.Y
UTG3WSIF2800.Y
2.5 mm
UTG2WSIF2500.Y
UTG3WSIF2500.Y
2.36 mm (No.8)
UTG2WSIF2360.Y
UTG3WSIF2360.Y
2 mm (No.10)
UTG2WSIF2000.Y
UTG3WSIF2000.Y
1.7 mm (No. 12)
UTG2WSIF1700.Y
UTG3WSIF1700.Y
1.6 mm
UTG2WSIF1600.Y
UTG3WSIF1600.Y
1.4 mm (No. 14)
UTG2WSIF1400.Y
UTG3WSIF1400.Y
1.25 mm
UTG2WSIF1250.Y
UTG3WSIF1250.Y
1.18 mm (No.16)
UTG2WSIF1180.Y
UTG3WSIF1180.Y
1 mm (No. 18)
UTG2WSIF1000.Y
UTG3WSIF1000.Y
850 μm (No. 20)
UTG2WSIF0850.Y
UTG3WSIF0850.Y
800 μm
UTG2WSIF0800.Y
UTG3WSIF0800.Y
710 μm (No. 25)
UTG2WSIF0710.Y
UTG3WSIF0710.Y
630 μm
UTG2WSIF0630.Y
UTG3WSIF0630.Y
600 μm (No. 30)
UTG2WSIF0600.Y
UTG3WSIF0600.Y
500 μm (No. 35)
UTG2WSIF0500.Y
UTG3WSIF0500.Y
425 μm (No. 40)
UTG2WSIF0425.Y
UTG3WSIF0425.Y
400 μm
UTG2WSIF0400.Y
UTG3WSIF0400.Y
355 μm (No. 45)
UTG2WSIF0355.Y
UTG3WSIF0355.Y
315 μm
UTG2WSIF0315.Y
UTG3WSIF0315.Y
300 μm (No. 50)
UTG2WSIF0300.Y
UTG3WSIF0300.Y
250 μm (No. 60)
UTG2WSIF0250.Y
UTG3WSIF0250.Y
212 μm (No. 70)
UTG2WSIF0212.Y
UTG3WSIF0212.Y
200 μm
UTG2WSIF0200.Y
UTG3WSIF0200.Y
180 μm (No. 80)
UTG2WSIF0180.Y
UTG3WSIF0180.Y
160 μm
UTG2WSIF0160.Y
UTG3WSIF0160.Y
150 μm (No. 100)
UTG2WSIF0150.Y
UTG3WSIF0150.Y
125 μm (No. 120)
UTG2WSIF0125.Y
UTG3WSIF0125.Y
106 μm (No. 140)
UTG2WSIF0106.Y
UTG3WSIF0106.Y
100 μm
UTG2WSIF0100.Y
UTG3WSIF0100.Y
90 μm (No. 170)
UTG2WSIF0090.Y
UTG3WSIF0090.Y
80 μm
UTG2WSIF0080.Y
UTG3WSIF0080.Y
75 μm (No. 200)
UTG2WSIF0075.Y
UTG3WSIF0075.Y
63 μm (No. 230)
UTG2WSIF0063.Y
UTG3WSIF0063.Y
53 μm (No. 270)
UTG2WSIF0053.Y
UTG3WSIF0053.Y
50 μm
UTG2WSIF0050.Y
UTG3WSIF0050.Y
45 μm (No. 325)
UTG2WSIF0045.Y
UTG3WSIF0045.Y
40 μm
UTG2WSIF0040.Y
UTG3WSIF0040.Y
38 μm (No. 400)
UTG2WSIF0038.Y
UTG3WSIF0038.Y
Sieve Shaker with Time Adjustment
Product code
UTG0311
Sieve Shaker with Time Adjustment for Ø200/300 mm (Ø8”/12”) Frame Sieves
UTG0312
Sieve Shaker with Frequency and Time Adjustment, for Ø200/300 mm (Ø8”/12”) Frame Sieves
UTG0317
Noise Reduction Cabinet for UTG0311 and UTG0312 Sieve Shakers
Information
Models for 220240V 50 Hz, 1 ph.
UTG0311T
UTG0312
Models for 110120V 60 Hz, 1 ph.
UTG0311N
UTG0312N
Models for 220240V 60 Hz, 1 ph.
UTG0311K

Standards
EN 9325; ISO 565, 33101, 33102; ASTM E11, 323; BS 4101, 4102
The UTG0311 and UTG0312 Sieve Shakers impart a circular motion to the material being sieved so that it makes a slow progression over the surface of the sieve.
They are equipped with a dynamic power source which ensures the right vibration is imparted to the sieves and sample for fast, accurate and reproducible tests. The vertical movement is fixed to ensure the sample spends maximum time on the sieve surface. The unique vibratory action also helps keep the apertures clear and free from binding.
The UTEST Sieve Shakers are fitted with a very efficient clamping device that ensures sieves are held firmly without overtightening and allows them to be quickly removed and replaced. The timer can be preset for any duration up to 60 minutes. The UTG0312 model has the additional frequency adjustment property.
Technical Specifications
Sieve Capacity
12 pieces of 200 (8”) mm sieves + pan and cover

8 pieces of 300 mm (12”) sieves + pan and cover

UTG0311 and UTG0312
UTG0317

Dimensions
500x500x320 mm
930x1030x1600 mm
Weight (approx.)
90 kg
140 kg
High Capacity Screen Shakers
Product code
UTG0420  High Capacity Screen Shaker TimeControlled
UTG0422
High Capacity Screen Shaker, Frequency & TimeControlled
UTG0425  Pan for the Screenshaker
UTG0426  Soundproof Safety Cabinet
Information
Models for 220240V 50 Hz, 1 ph.
UTG0420
UTG0422
Models for 110120V 60 Hz, 1 ph.
UTG0420N
UTG0422N
Standards
ISO 565, 33101, 33102
The UTG0420 and UTG0422 are ideal for sizing large quantities of crushed stones, sand, gravel, slag, coal, coke, ores, pellets and similar materials. The screen shaker has a capacity of approx. 30 liters sample. The shaker has 6 screen trays and 1 pan capacity.
UTG0420model is timecontrolled, UTG0422 model is frequency and timecontrolled.

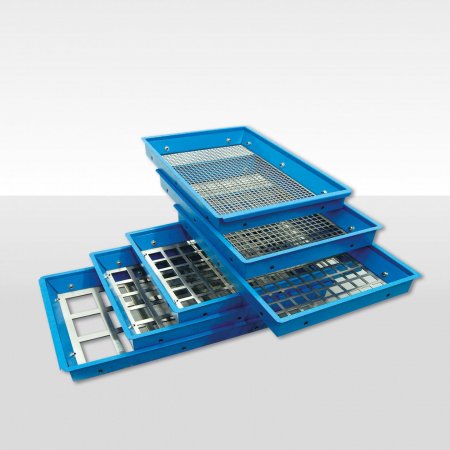

Matal trays have 630×420 mm sreening area and 667x452x67 mm sized. Screen trays with various aperture sized from 125 mm to 4 mm. Stainless steel wire cloth screen trays or perforated metal plate (steel) screen trays with round or square aperture are available on request.
UTG0426 Soundproof Safety Cabinet is manufactured from sheet steel lined internally with soundproofing material to reduce noise and for protection from dust.
Screen trays and Soundproof Safety Cabinet (UTG0426) should be ordered separately.
The UTG0420 or UTG0422 is supplied complete with;
 Pan (UTG0425)
Screen Trays

Square Nominal Aperture
ISO 33101
ISO 33102

Woven Wire Cloth
Perforated Plate Square Aperture
Perforated Plate Round Aperture

Product Code
Product Code
Product Code

125 mm
UTGTWSIC1250.Y
UTGTPSIC1250.QY
UTGTPSIC1250.RY
100 mm
UTGTWSIC1000.Y
UTGTPSIC1000.QY
UTGTPSIC1000.RY
90 mm
UTGTWSIC0900.Y
UTGTPSIC0900.QY
UTGTPSIC0900.RY
75 mm
UTGTWSIC0750.Y
UTGTPSIC0750.QY
UTGTPSIC0750.RY
63 mm
UTGTWSIC0630.Y
UTGTPSIC0630.QY
UTGTPSIC0630.RY
50 mm
UTGTWSIC0500.Y
UTGTPSIC0500.QY
UTGTPSIC0500.RY
45 mm
UTGTWSIC0450.Y
UTGTPSIC0450.QY
UTGTPSIC0450.RY
37.5 mm
UTGTWSIC0375.Y
UTGTPSIC0375.QY
UTGTPSIC0375.RY
31.5 mm
UTGTWSIC0315.Y
UTGTPSIC0315.QY
UTGTPSIC0315.RY
25 mm
UTGTWSIC0250.Y
UTGTPSIC0250.QY
UTGTPSIC0250.RY
22.4 mm
UTGTWSIC0224.Y
UTGTPSIC0224.QY
UTGTPSIC0224.RY
20.0 mm
UTGTWSIC0200.Y
UTGTPSIC0200.QY
UTGTPSIC0200.RY
19 mm
UTGTWSIC0190.Y
UTGTPSIC0190.QY
UTGTPSIC0190.RY
16 mm
UTGTWSIC0160.Y
UTGTPSIC0160.QY
UTGTPSIC0160.RY
14 mm
UTGTWSIC0140.Y
UTGTPSIC0140.QY
UTGTPSIC0140.RY
13,2
UTGTWSIC0132.Y
UTGTPSIC0132.QY
UTGTPSIC0132.RY
12.5 mm
UTGTWSIC0125.Y
UTGTPSIC0125.QY
UTGTPSIC0125.RY
11.2 mm
UTGTWSIC0112.Y
UTGTPSIC0112.QY
UTGTPSIC0112.RY
10.0 mm
UTGTWSIC0100.Y
UTGTPSIC0100.QY
UTGTPSIC0100.RY
9.5 mm
UTGTWSIC0095.Y
UTGTPSIC0095.QY
UTGTPSIC0095.RY
8 mm
UTGTWSIC0080.Y
UTGTPSIC0080.QY
UTGTPSIC0080.RY
6.3 mm
UTGTWSIC0063.Y
UTGTPSIC0063.QY
UTGTPSIC0063.RY
5.6 mm
UTGTWSIC0056.Y
UTGTPSIC0056.QY
UTGTPSIC0056.RY
5.0 mm
UTGTWSIC0050.Y
UTGTPSIC0050.QY
UTGTPSIC0050.RY
4.75 mm
UTGTWSIC0047.Y
UTGTPSIC0047.QY
UTGTPSIC0047.RY
4 mm
UTGTWSIC0040.Y
UTGTPSIC0040.QY
UTGTPSIC0040.RY
3,35
UTGTWSIF3350.Y
—
UTGTPSIC3350.RY
3,15
UTGTWSIF3150.Y
—
UTGTPSIC3150.RY
2,8
UTGTWSIF2800.Y
—
UTGTPSIC2800.RY
2,5
UTGTWSIF2500.Y
—
—
2,36
UTGTWSIF2360.Y
—
—
2,0
UTGTWSIF2000.Y
—
—
1,7
UTGTWSIF1700.Y


1,4
UTGTWSIF1400.YS


1,2
UTGTWSIF1200.YS

—
1,18
UTGTWSIF1180.YS


1,0
UTGTWSIF1000.YS


0,850
UTGTWSIF0850.YS


0,710
UTGTWSIF0710.YS


0,600
UTGTWSIF0600.YS


0,500
UTGTWSIF0500.YS

—
0,425
UTGTWSIF0425.YS


0,335
UTGTWSIF0335.YS


0,300
UTGTWSIF0300.YS


0,250
UTGTWSIF0250.YS


0,212
UTGTWSIF0212.YS


0,180
UTGTWSIF0180.YS


0,150
UTGTWSIF0150.YS


0,125
UTGTWSIF0125.YS

—
0,075
UTGTWSIF0075.YS

—
0,063
UTGTWSIF0063.YS


“.YS” type sieves are strengthened/reinforced.
SCREEN SHAKER


Dimension
570x850x1250 mm
Weight (approx.)
215 kg
Power
550 W
