Semi-Automatic Digital Bitumen Penetrometer

Product code

Standarts

Standards

EN 1426; ASTM D5; AASHTO T49

The UTB-0120 Semi-Automatic Digital Bitumen Penetrometer is used to determine the penetration of bituminous samples under constant load, time and temperature.

The Penetrometer consists of a frame with a levelling screws and screw gear assembly with handwheel for vertical adjustment, a digital penetration measurement gauge with 0.01 mm resolution/readibility, a digital timer, a magnifying lens and a low voltage illuminator mounted on flexible arms.

Penetration time 0-99 sec can be set up by user with the digital timer The timer will allow the needle to free fall into the sample for the engaged time interval and then lock the needle from advancing while providing a direct reading of the test results.

The Semi-Automatic Digital Penetrometer is supplied complete with;

• Penetration Needle, 2,5g, 1 pieces
• Needle holder
• Weights of 50g and 100 g
• Transfer Dish

• Sample Cup Ø 55×35 mm, 3 pieces, stainless steel

Fully Automatic Electronic Bitumen Penetrometer

Product code

Standarts

Standards

EN 1426; ASTM D5; AASHTO T49

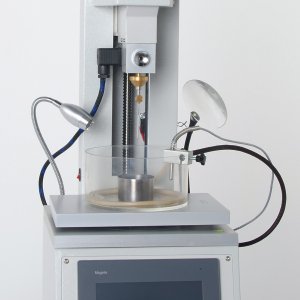

UTB-0130 Fully Automatic Electronic Bitumen Penetrometer with automatic surface detection is used for determination of the needle penetration according to EN 1426, ASTM D5 and AASHTO T49 standards. The penetration depth of the needle is determined with a pulse type electronic measuring system, which is separated from the plunger during the test, this allows the free guidance of the plunger which virtually eliminates friction during the test. UTB-0130 incorporates automatic surface detection which reduces operator based errors and enables performing penetration tests in a quicker way.

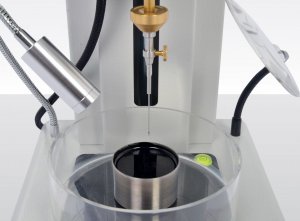

Before the start of each test, the measuring system automatically resets, and then the penetration needle moves down to the sample using the electric drive. The plunger is then automatically released onto the sample and raised automatically after the testing period. The test result is displayed on the digital TFT touchscreen.

A magnifying glass and an ultra- bright LED lamp are supplied to assist the operator in addition to automatic surface detection technology. The plunger can easily be removed for weight calibration.

In addition to automatic surface detection, UTB-0130 has a PT 100 temperature sensor to measure the temperature in the transfer dish.

The Automatic Electronic Penetrometer is supplied complete with;

• Penetration Needle, 1 piece.
• Needle holder
• Weights of 50g and 100g
• Transfer Dish

• Sample Cup, Ø 55×35 mm, 6 pieces, stainless steel

Technical Specifications

Ring and Ball Test

Product code

Standarts

Standards

EN 1427; ASTM D36; AASHTO T53

UTB-0231E and UTB-0231A assemblies are used for determining the softening point of bituminous materials by ring and ball method with UTD-1412 or UTD-1410Y hot plate.

UTD-0412 hot plate with magnetic stirrer which works conforming to EN and ASTM standards.

The hot plates include an immersion type temperature sensor with it’s holder and a stirring bar. The hot plates which are supplied with an immersion type temperature sensor with it’s holder and a stirring bar should be ordered separately.

If required, pouring plate, glass thermometers (UTGT-1305, UTGT-1315) or ASTM thermometers (15C or 16C) should be ordered separately.

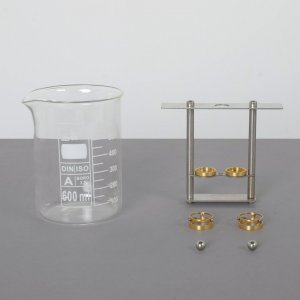

The assemblies include a ring holder, a bottom plate, 2pcs. brass rings, 2pcs. brass ball centering guides, 2pcs. stainless steel balls and a glass beaker (UTB-0231E with UTGG-1330 or UTB-0231A with UTGG-1335).

Automatic Ring and Ball Apparatus

Product code

Standarts

Standards

EN 1427; ASTM D36; AASHTO T53

UTEST UTB-0240 Automatic Ring and Ball/Softening Point Tester is an innovative microprocessor controlled automatic testing device which is used for determining the softening point of bituminous materials using water or glycerol as bath liquid in a range from 30°C to 150°C.

Two bitumen samples casted in shouldered brass rings while being held in horizontal position, temperature is increased under controlled rate acc. to standards. The softening point is the average temperature value of two samples at the time they collapse 25 mm while each carrying a steel ball.

UTB-0240 is equipped with the assembly (UTB-0241), a cooling and heating system, speed controlled magnetic stirrer, motorized beaker lift, optic sensors, temperature probe with its holder.

UTS-0241 Assembly includes a ring holder, a bottom plate, 2pcs. brass rings, 2pcs. brass ball centering guides, 2pcs. stainless steel balls, a glass beaker (UTGG-1335) and a magnetic stirrer bar.

The pouring plate, should be ordered separately.

Two revolutionary features of the UTB-0240 are the immersed heating resistance and the cooling mechanism for the specimen pre-conditioning. Immersed heating resistance provides direct heat transfer to bath liquid without any loss and it is more efficient than the traditional hot plates. Combined with the PID control, temperature gradient is strictly maintained during the test. Cooling unit reduces the temperature of the bath liquid to 5°C automatically. This feature eliminates the dependency to a refrigerator or dealing with ice cubes for test preparation.

To ensure uniform temperature distribution, bath liquid is stirred by an integrated step motor with adjustable speed and a magnetic stirring bar.

Optic sensors instantaneously detect the specimen collapse and the control unit records the softening point temperature value.

Control unit collects data from the temperature probe and governs the cooling and heating systems in PID control loop. Apart from the control, it utilizes user interface functions such as defining test sequences, multiple point & offset calibration of the temperature probe, calibration preparation menu, fine tuning of temperature gradient and visual simulation of the test area.

Main Features

• Uses both water and glycerol as bath liquid (30-150°C)

• Automatic pre-conditioning and test start

• User defined test sequences and automatic finalization of the test

• PID controlled heating and cooling system

• Optic sensors for accurate determination of softening point

• Motorized beaker lift

• Colored touch-screen graphic display

• Title information input such as date/time, test number, operator name

• Versatile calibration and calibration preparation menu

Safety Features

• Heater is automatically shut down at the end of the test cycle and cooling media and a solenoid valve is automatically opened by the controller.

• Automatic test interruption when there is a probe failure or when the probe is not positioned properly.

Fraas Breaking Point Apparatus

Product code

Standarts

EN 12593

The UTB-0257 Breaking Point Apparatus is used to determine the breaking point of solid and semisolid bitumen.

The Fraass Breaking Point is the temperature at which bitumen first becomes brittle, as indicated by the appearance of cracks when a  thin film of  bitumen on a metal plaque is cooled and flexed in accordance with specified conditions.

The apparatus consists of a bending device, a plaque made of springly stainless steel 41x20x0.15 mm, a cooling device, a thermometer IP 42 C, a plate and stand.

RTFOT – Bitumen Oven for Rolling Thin – Film Oven Test

Product code

Standarts

EN 12607-1; ASTM D2872

Rolling Thin-Film Ovens are used to measure the combined effects of heat and air on a thin moving film of semisolid asphaltic materials/ bitumen or bituminous binders simulating the hardening which most bituminous binders undergo during manufacturing and placement.

The Internal chamber of UTB-0340A and UTB-0340E are manufactured from stainless steel, insulated with fiberglass or similar, the door has a symmetrically located window.

The ovens have a programmable temperature controller which works in PID mode and digital display system. Grade A platinium resistance thermometer is used for measuring and controiling the temperature of the oven. The temperature can be read from the digital unit placed on the oven. Over tempereture controlled by a mechanical switch. Conforming to the CE Directives.

Air Compressor should be ordered separately. Maximum pressure should not exceed 2 bar when an air compressor is used with.

UTGE-3700 Laboratory air compressor,supplied complete with hose and gun should be ordered seperately.

UTGE-3572                                        UTGE-3700

The Rolling Thin-Film Ovens are supplied complete with;

• Glass Comtainers, 8 pcs.
• Air-Drying Unit ( UTGE-3572 )
• Transparent Hose, 8/5,5mm(OD/ID), 3m.

Ductility Testing Machines

Product code

Information

Standards

EN 13398; ASTM D113, D6084; AASHTO T51; NF T66

The UTB-1400 Ductility Testing Machine is used to determine the ductility of bituminous materials in a briquette mould by measuring the breaking elongation at a constant speed of 50 mm/min,  elongation (pull) capacity max. 1500 mm. It is designed for testing 3 specimens simultaneously. The Internal tank is made of stainless steel. The bath is fitted with an immersion heater in order to obtain (in normal conditions), the 25°C test temperature.

Each machine comprises speed control and water circulator to maintain the homogenous water temperature.

UTB-1400 and UTB-1420 have the same specifications, except that UTAS-0420 contains an internal cooler. It is not possible to convert UTB-1400 to UTB-1420

 Moulds and mould base plates should be ordered separately.

Force Ductility Testing Machine

Product code

Information

Standards

EN 13589, 13398, 13703; ASTM D113, D6084; AASHTO T51, AASHTO T300

The UTB-1430 Force Ductility Testing Machine is used to determine the the deformation energy required to stretch a bitumen sample from 200 mm elongation to 400 mm elongation. Force ductility machine is capable of testing 3 specimens simultaneously. The speed of the machine can be adjusted from 5 mm/ min. to 100 mm/ min. Internal tank is made of stainless steel. The bath is fitted with an immersion heater in order to obtain the 25°C test temperature required for normal ductility testing.

Water bath is covered by insulating material to reduce the heat loss during testing.

The machine can be supplied with an external Cooler / Circulator Unit necessary to obtain the 5°C test temperature required for force ductility testing according to EN 13589.

UTB-1430 Force Ductility Testing Machine has 3 load cells. The accuracy of load cells are ±0,1N with a maximum capacity of 300 N. Test speed can be adjusted and load-displacement curves can be drawn through the software. Software for UTB-1430 is capable of calculating deformation energy according to EN 13589 and displaying force vs displacement graphs for each sample separately or on the same screen.

Cooler/Circulator Unit (UTGE-4110), moulds and mould base plates should be ordered separately.

Main Features

• Elongation measurement through motor encoder.

• 3 simultaneous load measurements with 18 bit resolution.

• Ethernet for connection to PC (not included).

• Colour large TFT graphic display with touch screen

• PID controlled heating and cooling system.

• Fine adjustment of test starting position for easy insertion and removal of different types of test moulds.

• Closed-loop PID temperature control of 25±0.5°C

• Temperature range from 4°C to  ambient temperature ( ±0.5°C ) with the Cooler / Circulator Unit

 (UTGE-4110)

Software

• Selection of test parameters can be made either by TFT graphic display or computer software.

• Automatic calculation of deformation energy.

• Display of load vs deformation graphs.

• Software assistance for elastic recovery test according to EN 13398 to minimise operator error.

Polymer Modified Bitumen Mixer

Product code

Information

EN 12697-35

Modified Bitumen is used to prevent deteriorations like permanent deformation (wheel track), thermal cracking and segregation of binder from aggregate which might occur at pavement constructions.

Polymer Modified Bitumen Mixer is used to mix different type of polymer dopes with bitumen homogeneously at proper temperature.

Mixer provides perfect mixtures by means of its special disintegrator head which operates at 6000-8000 r.p.m. Heat loss is kept at minimum level by a thermal isolation vessel.

UTB-1440 is supplied complete with;

• UTGG-1345 2000 ml Borosilicate Glass Beaker
• UTB-1441 Thermal Isolation Vessel for Glass Beaker
• UTD-1410 Digital Hot Plate with Magnetic Stirrer

Technical Specification:
