Large Capacity Sample Splitter

Product code

Standarts

N 932-2; ASTM C702; BS 812:1, 1377:1, 1924:1

UTA-0320 Large Capacity Sample Splitter is used for splitting aggregate samples. Slot widths are adjustable from 12,5 mm to 100 mm and the splitter is equipped with 25 channels with a 20 lt. hopper capacity.

The Large Capacity Sample Splitter is supplied complete with;

• Sample Collection Pan, 2 pcs.

Laboratory Type Crusher and Grinder

Product code

Information

UTA-0360 is used for crushing, UTA-0365 is used for grinding cement clinker, ceramics, basalt, chamotte, construction materials, alloys, coal, coke, feldspar, glass and various materials in the laboratory when smaller sample sizes are required for testing. Three models are available (see Technical Specifications) depending on different feed sizes, output grain sizes and capacity requirements.

(*) Dijital setting of grinding time from 0 up to 999 h or 999 min. or 999 seconds

Flakiness Index Sieve Sets BS

Product code

Information

Shape Index Caliper

Product code

Information

EN 933-4; DIN 4226; CNR No.95; NLT 354

Shape Index Caliper is used for the determination of the shape factor of aggregates.

Measurement range is 200 mm and graduated with 0.05 mm increments.

Sand Equivalent Test Sets

Product code

Information

EN 933–8; ASTM D2419; AASHTO T176; UNI 8520–15; UNE 83131; CNR No. 27

The Sand Equivalent test set is used to determine the fines of aggregates. The test set is supplied with  4 transparent acrylic plastic measuring cylinders, siphon assembly (irrigator tube with valve, solid rubber stopper, siphon tube and hose, blow tube) 5 lt. plastic can, weighted foot assembly, measuring can, wide-mouth funnel, and ruler.

UTA-0515 Washing and Flocculating (Stock Solution) should be ordered seperately.

The Sand Equivalent Test Set is supplied complete with;

• Transparent Graduated Acrylic Plastic Measuring Cylinder, 4 units for UTA-0500A
• Transparent Acrylic Plastic Measuring Cylinder – 4 units for UTA-0500E
• Siphon Assembly (Irrigator Tube with Valve, Solid Rubber Stopper, Siphon Tube and Hose, Blow Tube)
• Plastic Can – 5 lt.
• Weighted Foot Assembly
• Measuring Tin
• Wide-Mouth Funnel
• Ruler
• Special Carrying Case

Sand Equivalent Shaker

Product code

Information

Standards

EN 933–8; ASTM D2419; AASHTO T176; UNI 7446

UTA-0510 Sand Equivalent Shaker is used for the uniform shaking of Sand Equivalent Measuring Cylinders, at a specified rate and stroke.

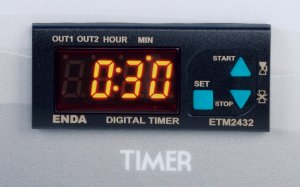

The shaker is supplied complete with a timer. The horizontal movement, cycle and shaking time can easily be adjusted on the shaker to comply with EN or ASTM standards.

The Sand Equivalent Shaker is supplied complete with;

• Safety Cover (conforming with CE directives)
• Timer

Methylene Blue Test Set

Product code

Information

EN 933-9; NF P94-068; UNE 83 180; UNI 8520-15

The Test Set is used for determining the Methylene Blue value of 0/2 mm fraction in fine aggregates.

UTGC-0886 Type B methylene blue powder has a dye content ≥82 %(spectrophotometrically).

Filter paper, methylene blue powder and kaolinite should be ordered separately.

Set Consists of

• High Speed Agitator Motor, 400/600 r.p.m.
• Stirring Propeller, Ø 70 mm 4 flanks
• Glass Burette, 50 ml x 0.1 ml
• Burette Holder and Stand
• Glass Rod, Ø 8×300 mm
• Plastic Beaker, 1000 ml

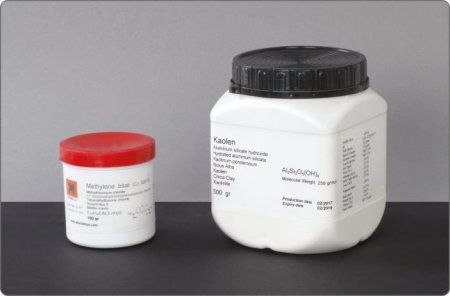

UTGC-0885Y         UTGC-0880                                 UTA-0531Y                                 UTA-0532

Los Angeles Abrasion / Fragmentation Machine

Product code

Information

Standards

EN 1097-2, 12697-17, 13450; ASTM C131, C535; AASHTO T96

The Los Angeles Abrasion Machine is used for determination of the aggregates resistance to fragmentation. The machine consists of an electronic control unit and a rolled steel drum having an inside diameter of 711 mm and internal length of 508 mm. The drum is rotated at a speed of 31-33 r.p.m. The internal shelf provided with the machine confirms to ASTM, AASHTO and EN standards. The machine is equipped with an automatic counter, when the preset revolution count is reached, the machine will stop automatically. The drum is equipped with an interlock device which allows the operator to lock the drum into position for easy loading/unloading of the sample.

A steel tray is supplied with the machine for easy discharge of specimen and abrasive charges.

The standard model can be supplied with a safety/noise reduction cabinet. The cabinet is lined internally with soundproofing material to reduce sound level conforming to CE directives. The cabinet must be ordered with the Los Angeles machine if required, as the electronic control unit will be installed on the safety cabinet at the time of manufacture. The cabinet is equipped with an electric safety device which automatically stops the rotation of the drum when the door is opened, conforming to CE directives.

• Abrasion balls and 1.6 mm, 10mm, 11.2mm (or 12.5mm), 14 mm sieves and guard sieves (2mm, 4mm and 6mm) acc. to EN standard
• Abrasion balls, 1.7 mm( No.12) sieve and other sieves which chance depending the grain size acc. to ASTM and AASHTO standards, should be ordered separately.

The Los Angeles Abrasion Machine is supplied complete with;

• Steel Tray

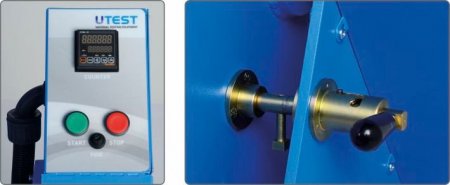

Control Panel                   Drum Position Lock with Safety Switch

Abrasion Testing Machine According to Böhme

Product code

Information

EN 1338, 1339, 1340

UTA-0615 the Abrasion Testing Machine according to Böhme is used for determining the abrasion resistance of concrete and natural stone products used for internal or external paving.

The machine consists of a grinding wheel of approx. 750 mm diameter, a removable testing weight of 30 kg and a clamping device for the sample. The machine is equipped with an adjustable counter (30 ± 1 r.p.m.) and an automatic cut-off system which stops the machine after 22 rotations.

UTA-0616 Abrasive Sand should be ordered separately.

Micro-Deval Apparatus EN

Product code

Information

Standards

EN 1097-1, 13450

The Micro Deval Testing Machine is used to determine the resistance to wear of aggregates. Automatic digital counter allows machine to stop automatically at the preset number of revolutions.

Stainless steel drums are rotating at a speed of 100 ± 5 r.p.m.

The machine can accept up to 4 pcs. Ø 200×154 mm drums or 1 pcs. Ø 200×400 mm drums.

Stainless steel abrasion charges, Ø 200×400 mm steel drums, sieves (1,6 mm, 8 mm, 10 mm, 11,2 mm or 12,5 mm and 14,0 mm) and abrasive steel charges collector UTA-0626) – for railway ballast (1,6 mm, 8 mm, 31.5 mm, 40.0 mm and 50.0 mm sieves and should be ordered separately.

UTA-0620E Micro-Deval Apparatus is supplied complete with;

• Stainless Steel Drum, EN, Ø 200×154 mm, 4 pcs.

Bulk Density Measures

Product code

Information

EN 1097–3, 12350-6

Density (Unit Weight) Measures are used to determine the weight per cubic meter of bulk or compacted agregates.

The Density Measures are manufactured from heavy duty steel complying with the related standard. Available in 1, 3, 5, 7, 10, 15, 20 and 30 lt capacity models to comply with the relevant standards. The measures are coated against corrosion.

Sand Absorption (Abraham Cone) Sets

Product code

Information

EN 1097-6; BS 812-2; UNI 8520-13-16; ASTM C128; NLT 154; DIN 12039

The Sand Absorption Abraham Cone Set is used in determining the specific gravity and water absorption of fine aggregates smaller than 10 mm. The apparatus is manufactured from plated steel for protection against corrosion.

The cone dimensions are:upper diameter of 40 mm, lower diameter of 90 mm and 75 mm height, and the tamping rod has a 25 mm base diameter and approx. 340 g in weight.

The abrasion loss rate of aggregates is calculated after the specified number of revolutions stated in the relevant standard.

Pyknometers (Bottle Type)

Product code

Information

Magnesium Sulphate / Sodium Sulphate Test Water Bath

Product code

Information

Standards

EN 1367-2, 13450; ASTM C88; UNI 8520-10; UNE 7136

Magnesium Sulphate and Sodium Sulphate Tests are used for determining the soundness of aggregates when subjected toweathering action such as freezing and thawing in concrete or other applications. Only the specific products are listed above for the test. It should be noted that other equipment like ovens, sieves, balances etc. are also required to perform these tests.

Sodium Sulphate can be used instead of Magnesium Sulphate according to the ASTM standard. UTGG-2415 Hydrometer 1100-1200 g/ml is required for the test with Sodium Sulphate Test.

The temperature of test solution is automaticly adjusted to required temperature with a microprocessor type sensor placed in the water bath. The second sensor can be placed in the lever lid containers or stainless steel immersion container by user.The temperature data of water bath and the temperature test solution are displayed in real time on digital screen with 0.1°C resolution.

Homogenous temperature distribution can be obtain with water circulation pump that makes feedback.

Magnesium Sulfate / Sodium Sulfate Test Water Bath has (20±2) ⁰C accuracy and can be used as general purpose water bath that temperature is between 15-60 °C temperature

Supplied complete with the immersion container with the cover.

Density Baskets, Container for Density Basket, Hydrometer, Magnesium or Sodium Sulphate should be ordered seperately.

        UTW-1008                                       UTGH-1460

Freezing and Thawing Chamber for Slab Tests

Product code

Information

Standards

EN 1338, 1339, 1340, 1367-6, 13748-2; CEN/TS 12390-9 (Slab Test)

UTD-1440 and UTS-1442 are used for the determination of resistance to freezing and thawing of the construction materials.

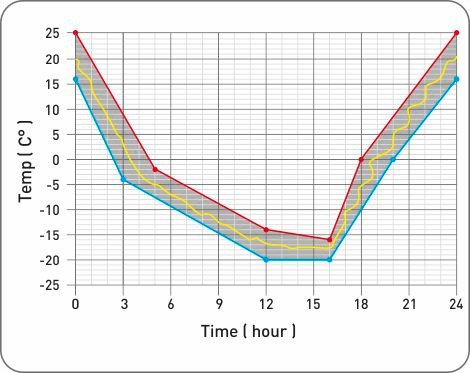

The chambers are equipped with a user defined program including up to 16 steps. Time can be adjusted to 999 minutes for each step of the program. The temperature range of the cabinet is -30°C to +65°C.

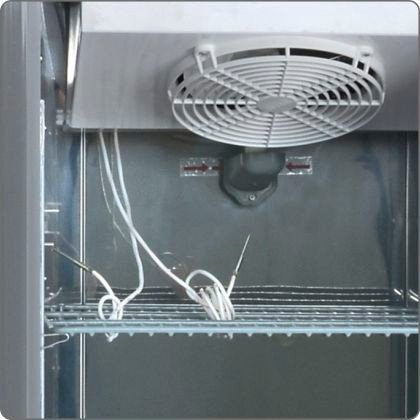

The temperature is controlled by a sensor which can be immersed either into the sample, or into the water which the sample is placed into or into the salty water solution placed on the sample before starting the test. The calibration of the sensor is carried out using the user friendly menu.

The distribution of temperature in the cabinets are performed using an integral fan.

Free of charge Utest Software for transfering the data real-time to a computer is supplied complete with the cabinet and data can be monitored during the tests. Data can be converted to an excel report or to a graph.

The condenser of the cabinets are fitted with an air cooled hermetic cooler. The gas used for the cooler does not include CFC’s.

The control unit is electronic and equipped with digital display with 0.1°C temperature resolution. The accuracy of cabin temperature distribution lower than 2°C.

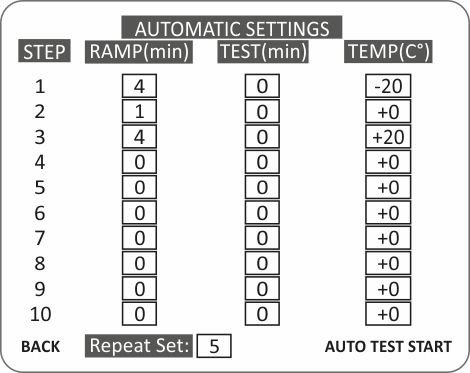

The user can preset the time and target temperature of each ramp and the number of each set by using the control unit.

UTD-1440 and UTD-1442 Freezing and Thawing Chambers are supplied complete with 3 pcs. displaceable shelves and a Utest software yazılım (USOFT-1440).

Alkali Aggregate Reaction Bath

Product code

Information

Standards

CANADA CSA-A23.2-25A; For Moulds: ASTM C227, C490, C1260

The Alkali Aggregate Reaction Bath is used to keep 25x25x285 mm samples in NaOH (Sodium Hydroxide) or in any other solution at a specified temperature. The temperature can be adjusted between ambient to 80°C by using the digital controller.

The chamber of the bath is made of stainless steel and has a a capacity of 27 specimens (25x25x285 mm).

UTA-0880 is supplied complete with 3 pcs. stainless steel alkali specimens cans (UTA-0882). Each can has a stainless steel hanger which can hold 3 pcs. 25x25x285 mm specimens. Additional alkali specimens cans should be ordered separately.

UTCM-0033 is used to determine the potential alkali reactivity of cement-aggregate combinations (mortar-bar method). This mould is also used for determining the length change of hardened cement paste, mortar and concrete.

The test also requires UTCM-0200 or UTCM-0210 or UTC-1170 Length Comparators.

UTA-0880 Aggregate Reaction Bath can also be used as a general purpose water bath.
